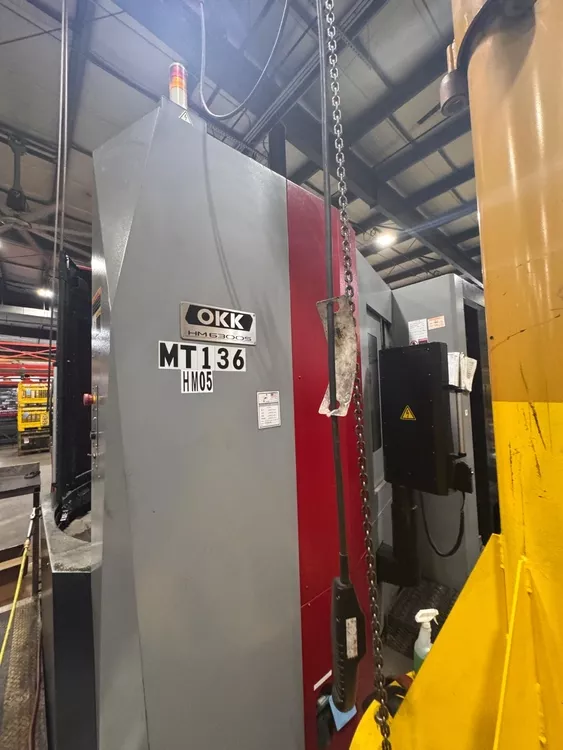

OKK HM6300S 4 Axis

X-axis travel: 31.5"
Y-axis travel: 29.53"
Z-axis travel: 34.65"
B-axis travel: 0.001°

Rapid traverse rate X: 2,362 ipm
Rapid traverse rate Y: 2,362 ipm
Rapid traverse rate Z: 2,362 ipm

Cutting feed rate: 1,574 in/sec
Control: FANUC 31i-B5 CNC color control
High pressure thru spindle coolant
Renishaw part probe
Coordinate system rotation
Custom macro 600
Memory up to 8MB
Fast Ethernet
Data server
Hi-speed processing
Machine condition selecting
Pallet size: 24.8" × 24.8"
Number of pallets: 2
Pallet weight capacity: 1,543 lb
Pallet surface to spindle center: 1.96" – 31.5"
Pallet center to spindle gauge line: 2.76" – 37.4"
Spindle speed: 12,000 RPM
Spindle taper: CT50
Main motor: 40 hp
Automatic tool changer: 60
Tool diameter: 4.56", 10.63"
Tool length: 19.69"
Tool weight: 55 lb
Tool change time: 1.2 sec
Machine weight: 31,525 lb
Machine dimensions: 156" × 206" × 123.03" H
Big Plus spindle
Lift-up chip conveyor
