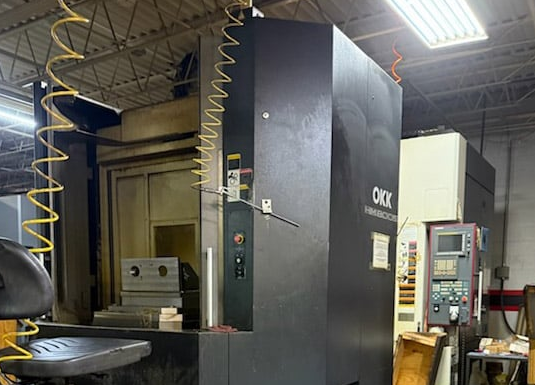

OKK HM800 CNC Horizontal Machining Center 4 Axis

OKK HM800 CNC Horizontal Machining Center
Year: 2008


Table & Travel:
Table size: 31.5” x 31.5”
Max weight on table: 4,400 lbs (uniform load)
Pallet indexing: 0.001°
X-axis travel: 55.12”
Y-axis travel: 43.31”
Z-axis travel: 41.34”
Distance from table top surface to spindle center: 2.36” – 45.67”
Distance from table center to spindle nose: 7.87” – 49.21”

Spindle & Tooling:
Spindle speeds: 35 – 12,000 rpm
Spindle taper: CAT50
Tool magazine capacity: 60 ATC
Through-spindle coolant: 1000 PSI

Control & Features:
Control: Fanuc 310iS Series A CNC
Full 4th axis
Chip conveyor
12,000 RPM spindle

Machine Dimensions & Weight:
Required floor space (L x W x H): 145” x 251” x 157”
Approximate weight: 54,000 lbs
