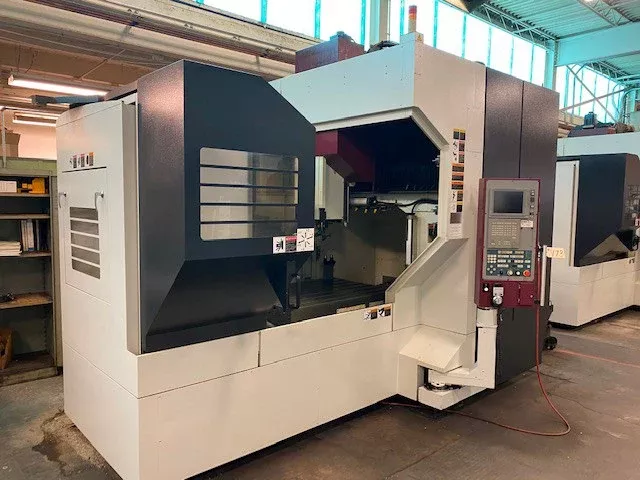

OKK VP 9000 3 Axis

OKK VP 9000
2005

Number of Tables 1
Table Size 51.8" x 36.22"
Max Table Load 3304 lbs
Spindle Nose to Table 3.94" to 25.98"
X Travel 44.09"
Y Travel 36.22"
Z Travel 22.05"
Rapid Traverse X/Y/Z 1260 IPM
Cutting Feed Rate 1259 IPM
Spindle Speed 20,000 RPM
Spindle Taper BIG PLUS CAT 40
Main Motor 30 HP
Automatic Tool Changer 40 Tools
Max Tool Diameter (adjacent empty) 4.92"
Max Tool Diameter (adjacent full) 3.23"
Max Tool Length 11.81"
Max Tool Weight 15.4 lbs
Machine Weight 33,040 lbs

Rigid Tapping
Full Enclosure
Spindle Chiller
20,000 RPM CAT 40 BIG PLUS Mill Spindle
Oil Mist Air Blow Nozzle
NCOP Package A
Column Riser 7.87"
Mitsubishi Neomatic 635V 4-Axis CNC Control
Additional Workpiece Coordinates
Renishaw Probe
T1-A Tool Measurement Probe
Single Directional Positioning
Helical Interpolation
Additional Program Memory 1200 Meters
Skip Function
User Macro
Auto Corner Chamfering
Auto Corner Rounding
Tool Life Management
200 Tool Offsets
HP-HQ Control 1 High Speed Machining Mode I
Inch/Metric Conversion
Ethernet
Handheld Remote MPG
Transformer
