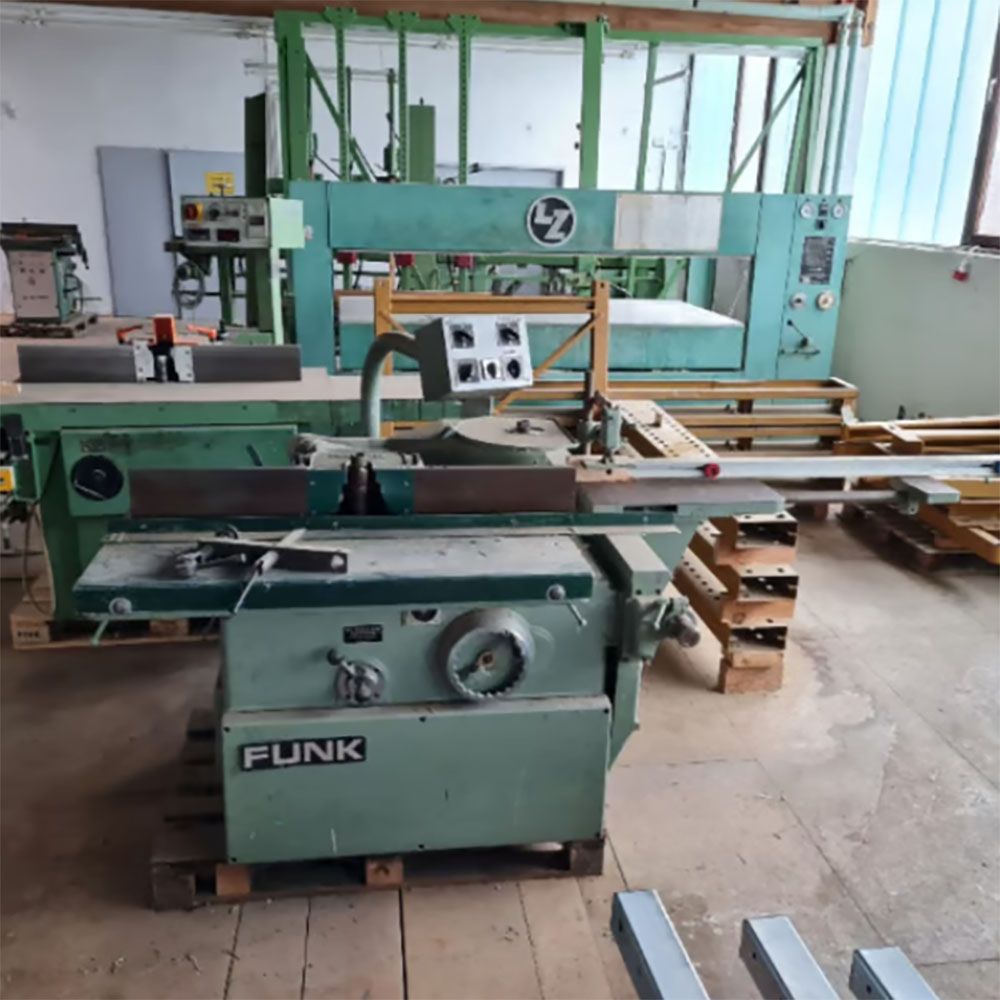

Funk, Okoma SF 3A Tenoning and milling machine

CUT-OFF SAW:
Max. saw blade diameter: 340 mm
Main saw chuck diameter: 30 mm
Cutting height: 110 mm
Saw blade tiltable: 0°-45°
Circular saw motor power: 2.2 kW
Extraction nozzle diameter: 100 mm

Mortise spindle:
Mortise arbor diameter: 40 mm
Clamping height: 170 mm
Height adjustment with handwheel, one turn in 2 mm increments
Division: 0.1 mm
Mortise spindle motor power: 5.5 kW
Extraction nozzle diameter: 120 mm
2 spindle speeds: 2,400/4,000 rpm
Max. tool diameter: 400 mm

MILLING SPINDLE:
Milling arbor diameter: 30 mm
Clamping height: 170 mm
Table opening: 240 mm
Reversing switch for forward/reverse rotation
Milling motor power: 7.5 kW
Milling stop/Fine adjustment
4 spindle speeds: 3,000/4,500/6,000/9,000 rpm
Extractor nozzle diameter: 120 mm
Height adjustment via handwheel: 110 mm
One revolution: 2 mm, one graduation mark: 0.1 mm

ROTATING TABLE:
Rotaping table travel: 1,380 mm
Rotaping table extendable: 1,000 mm
Extendable table top extension: 430 mm
Extendable workpiece support
Overhead operation
Rotaping table dimensions: L 600 x W 300 x H 1,300 mm

SPACE REQUIREMENTS OF THE COMPLETE MACHINE:
Without rolling table: L 1,860 x W 2,000 x H 1,500 mm
With rolling table: L 2,500 x W 2,000 x H 1,500 mm
Weight approx.: 1,470 kg
Condition: Used from liquidation
