Haberkorn, Okoma FZS1,SF3F,OBM Plus

Small window production consisting of:
Will be cleaned and checked before delivery.
1) Haberkorn FZS1 slotting machine
2) Okoma SF3F table milling machine
3) Oertli tool for the Haberkorn and Okoma machines
Wooden windows 1 set IV 68/78/88 and 1 set wooden aluminium windows IV 68/78mbuilt in 2011
4) Götzinger OBM Plus corner bearing and olive drilling machine, Maco MultiMatic fittings

Technical manufacturer's description:
- Haberkorn FZS1 slotting machine with automatic feed,
-stepless height adjustment D 40 mm
Cutting-to-length saw:
-Spindle arrangement: top
-Three-phase motor: 3 kW
-Spindle diameter: 30 mm
-Speed: 2800 rpm
-Saw blade diameter: 400 mm
-Automatic brake with speed monitoring
-Horizontal pneumatic positioning, manually adjustable
-Protective and extraction hood with extraction nozzle diameter: 100 mm

Slotting spindle D 40 mm:
-Power: 7.5 kW
-Speed: 4200 rpm
-Working length: 252 mm
-Max. tool diameter: 340 mm
-220 mm stroke, infinitely variable height adjustment via precision ball screws
-Protective cover and extraction hood with extraction nozzle diameter: 180 mm
-Automatic brake with speed monitoring

Studio table:
-Swivel range +/- 65 degrees
-Automatically changing counter blade (programmable)
-Pneumatic clamp
-High-precision electric degree display
-Automatic length compensation
-Counter blade for every angle setting in the cutting plane

Special equipment:
-Laser for workpiece positioning
-Pneumatic saw position
-Length stop LA 2500 mm + 1850 extension

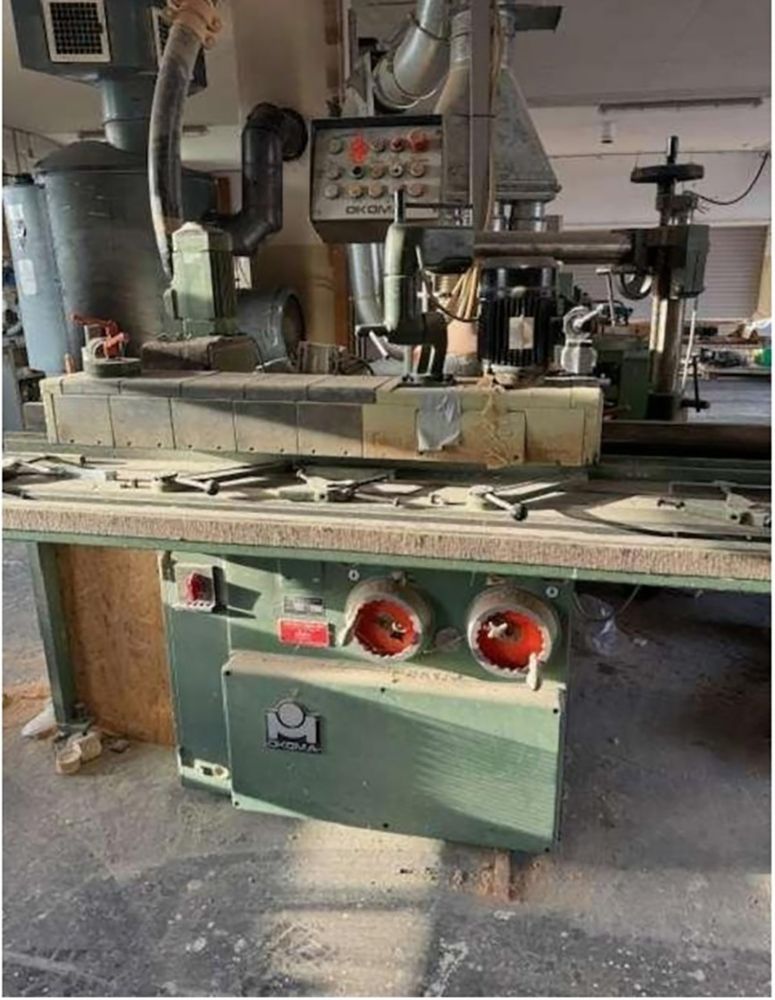

2) Okoma SF3F table milling machine with lifting spindle, 3 tools
-Suction connection nozzles 2 x 120 mm
-Spindle length 270 mm
-Counter stop ruler with fine adjustment and turret head
-Triple stroke, cycle height max. 90 mm
-Glass bead cutting saw with protective and extraction hood 80 mm diameter
-8 roller feed device with stand and hold-down arm, required for
glass bead cutting saw setup
-Pneumatically controlled pouring device for edge gear, speed 6000 rpm
-2x 3kW motor
-Mounting diameter 30 mm

3) Oertli tool for Haberkorn and Okoma machines
-1 set of wooden windows IV 68/78/88
-1 set of wood-aluminium windows IV 68/78


4) Götzinger OBM Plus corner bearing and olive drilling machine
-Corner and shear bearings + handle olive drilling
-Vertical drilling unit with:
-Quick-change drill head device
-Pneumatic feed via foot valve
-1x olive drill head 24 mm
-1x corner bearing double head
-Maco MultiMatic fitting
-1x adjustable folding stop on the left with 6 stops
-1x adjustable folding stop on the right with 6 stops
-1x machine stand complete with shelf
-220/400 V, 60 Hz, 1.3 kW
-1x roller conveyor approx. 1 m long with 2 rollers
-1x roller conveyor approx. 1.5 m long with 3 rollers
