Okuma CNC control OSP 200L 3800 rpm LU400 4 Axis

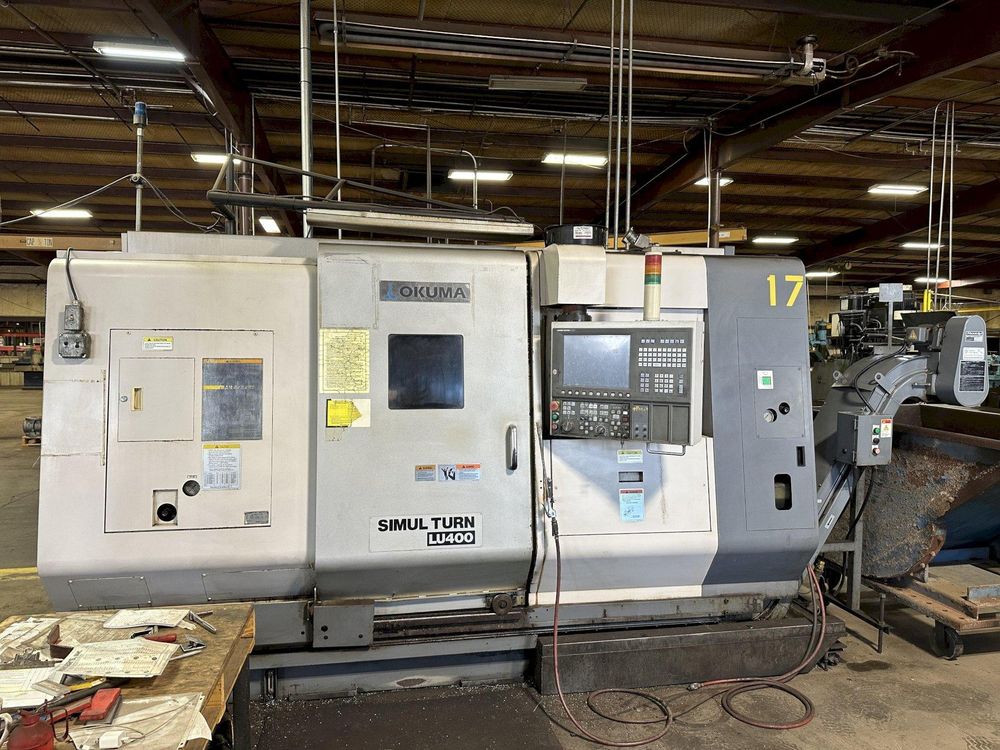

OKUMA LU400
Year 2006

CNC control OSP 200L
Number of axes 4
Chuck size 16 in
Swing over bed 25.59 in
Swing over carriage 16.54 in
Turning diameter 18 in
Turning length 25.59 in
Center distance 26.59 in
Bar capacity 4.3 in
Spindle bore 5.0 in
Spindle nose A2-8
Spindle speed 45–3800 rpm
Main spindle power 35 hp

X-axis travel (upper) 11.73 in
X-axis travel (lower) 7.67 in
Z-axis travel (upper) 26.57 in
Z-axis travel (lower) 26.38 in

Rapid traverse X-axis 984 ipm
Rapid traverse Z-axis 984 ipm
Upper turret capacity 12 stations
Lower turret capacity 10 stations

Turret index time 0.2 sec
Tailstock taper MT 5
Tailstock quill diameter 3.94 in
Tailstock quill travel 5.91 in
Max weight between centers 1320 lbs
Power 40 kVA, 220/480V, 3-phase
Overall dimensions 169 x 85 x 86 in (with chip conveyor)
Weight 19,800 lbs
