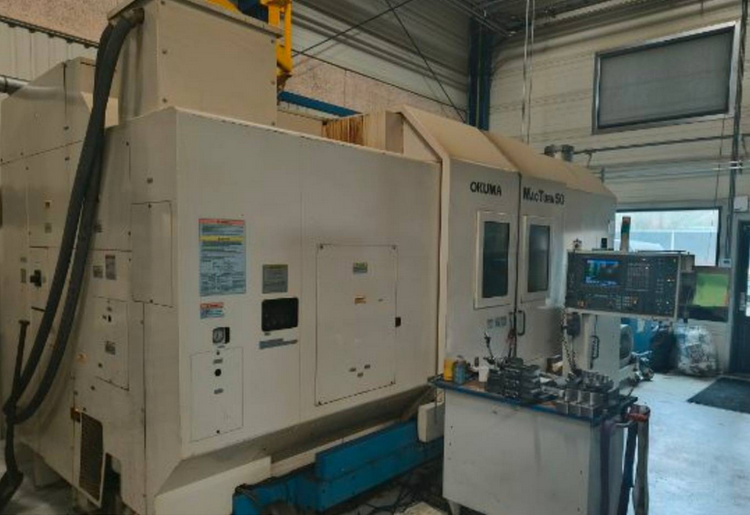

Okuma Control OSP 7000 L, DNC option 2800 rpm MAC TURN 50 4 Axis

X-axis travel 598 mm
Y-axis travel 230 mm (+110 / -120 mm)
Z-axis travel 1660 mm
C-axis 0.001°

Max turning diameter 580 mm
Turning length 1500 mm
Greatest pass round over bed 610 mm
Swing diameter over slide rest 580 mm

Main spindle speed range 12–2800 rpm
Main spindle bearing diameter 150 mm
Main spindle bore 110/96 mm
Main spindle nose JIS A2-11
Main spindle power capacity 37/30 kW

Driven tool stations speed range 40–3000 rpm
Tool shank height 25 mm
Boring bar shank diameter 50 mm
Turret type H2 ATC
Turret number of tool positions 2 (1x L-tool / 1x M-tool)
Driven station stepless

Tailstock quill diameter 120 mm
Tailstock quill stroke 170 mm
Tailstock center taper MT5
Tool magazine ATC 72

Tool taper MAS BT50
Max tool diameter 170 mm
Max tool length 465 mm
Max tool weight 20 kg

Tool magazine drive 3.2 kW
Rapid traverse X/Y 12000 mm/min
Cutting feed speed X/Z/Y 0.001–1000 mm/rev
Total power requirement 53 kVA
Helix cutter included
Machine weight approx. 18.5 t
Machine dimensions approx. 6.0 x 3.2 x 3.0 m
