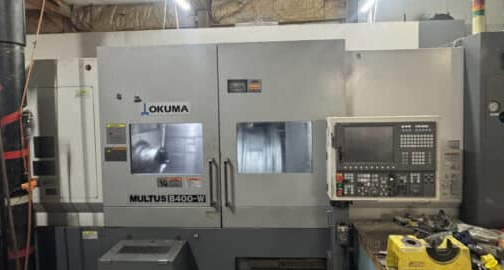

Okuma Control: OSP-P200L 2800 RPM MULTUS B400W (BB) 5 Axis

X-Axis Travel: 27.17"
Y-Axis Travel: 9.06" (+4.53" to -4.53")
Z-Axis Travel: 60.83"
C-Axis: 360° (Min Control Angle 0.001°)
B-Axis: 225° (-30° to 195°) (Min Control Angle 0.001°)
Rapid Traverse X & Z: 1575 IPM
Rapid Traverse Y: 1024 IPM
Rapid Traverse W: 787 IPM
Sub Spindle
Y-Axis
Parts Catcher
Interface for Bar Feed
RMP60 Spindle Probe
Auto Tool Setter
300 PSI Through Spindle Coolant
Filtering 2 Level Conveyor
All Available Tooling
All Available Manuals Included
Bar Capacity: 4"
Swing Over Bed: 27.95"
Swing Over Saddle: 27.95"
Distance Between Centers: 59.06"
Main Spindle Speed: 30 – 2800 RPM
Main Spindle Motor: 30 / 20 HP
Spindle Nose: A2-11
Tapered Bore: 4.33"
Mill Spindle Speed: 50 – 6000 RPM
Mill Spindle Motor: 19 / 13 HP
Max Torque: 85 / 58 Nm
Chuck Size Main: 15"
Chuck Size Sub: 12"
Tool Capacity: 40 ATC
Tool Shank: Capto C6
Max Tool Diameter: 3.54" / 5.12"
Max Tool Length: 15.75"
Max Tool Weight: 22 lbs
Machine Dimensions: 227" x 104" x 118"
Machine Weight: 34,100 lbs
