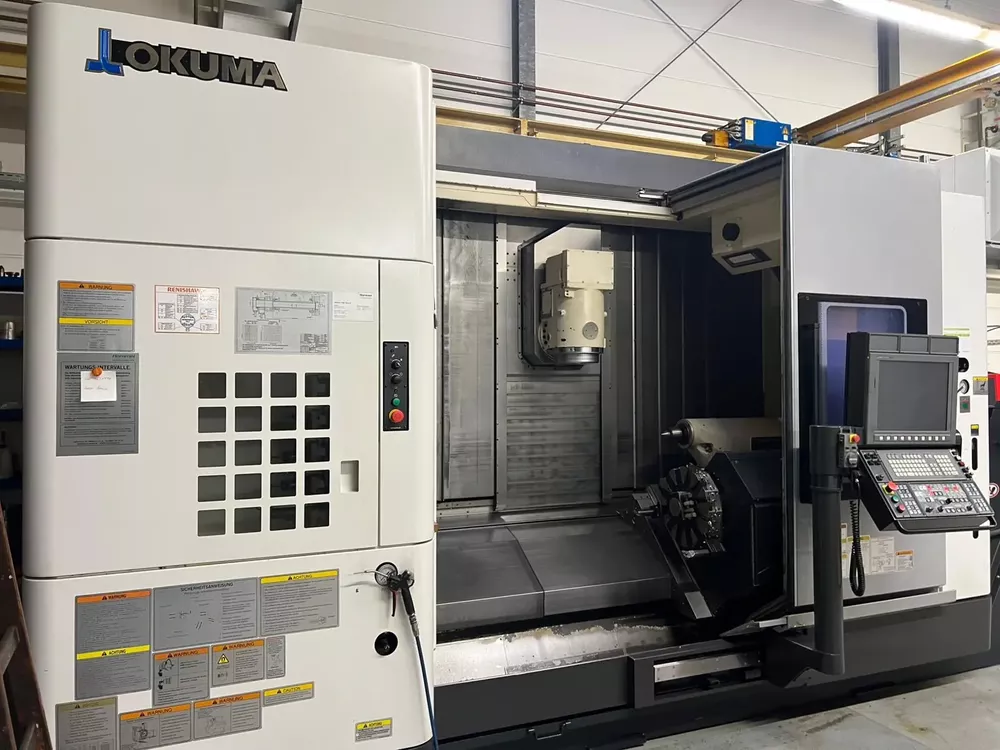

Okuma Control OSP P300S 3,000 rpm MULTUS U4000 2 SC 1500 6 Axis

X1-axis travel 695 mm
X2-axis travel 235 mm
Y-axis travel 300 mm
Z1-axis travel 1,600 mm
Z2-axis travel 1,461 mm
Tailstock travel 1,360 mm
B-axis -30° to 210°
B-axis 0.001°

Control OSP P300S
MacMan machine management with integrated BDE
Tool monitoring system for tool life and breakage
Tool measuring device for standard chucks
Renishaw RMP touch probe
Ethernet interface with browser and DNC-T1
2 USB 2.0 ports
Part program memory 2 GB
Max. length of single part program 2 MB
Coordinate transformation
10 workpiece zero points
Hi-Cut Pro high-speed control
Harmonic speed oscillation
Tool height compensation in Y-axis
Circular thread milling X/Z/Y/B
Eccentric milling X/Y/C

Max. rotary diameter 650 mm
Max. turning length 1,500 mm

Main spindle drive power 32/22 kW
Main spindle speed 3,000 rpm
Main spindle torque 955 Nm
Spindle nose A2-11
Spindle bore 112 mm
Hollow clamping cylinder SMW-VNK320-127 bore 127 mm

Milling spindle power output 22/18.5 kW
Milling spindle speed 12,000 rpm
Milling spindle HSK-A63

40 tool places
Max. tool diameter 90/130 mm
Max. tool length 400 mm

Lower turret with 12 tool stations
Self-centering bezel on lower turret
Hydraulic steady rest SMW SLU-X-3.2-ZS clamping range 50-200 mm
Programmable tailstock
TMF300 drum filter with 980 L tank
8 bar circulation pump
70 bar high pressure pump
Hinged belt chip conveyor

Machine dimensions 5,430 x 3,080 x 3,030 mm
Machine weight 18,000 kg
