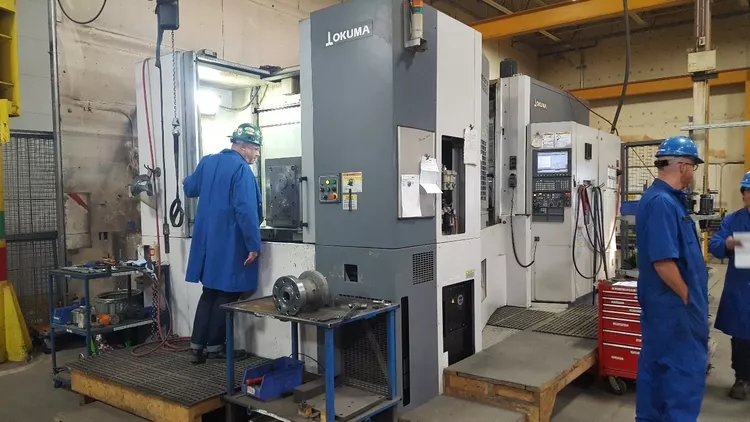

Okuma MA 600HB 4 Axis

X-axis travel: 39.37"
Y-axis travel: 35.43"
Z-axis travel: 39.37"
Table indexing: 0.001° N/C contouring
B-axis control
Control: OSP P200M CNC color control
Graphics animation
Program help
High-G function
Cycle time reduction
Helical interpolation
Direct positioning
Skip function
Change work coordinate
Playback IMAP
IMAP
Help function
Area machining
Angle 1/10,000 indexing
4-axis control
B-axis fixed
Touch sensor move
Thermal compensation
Coolant through spindle
Spindle air blow
Filtration unit
Chip conveyor
Coolant chiller unit
Synchronous tapping
Tool life management
Tool data 200
Auto tool breakage sensor (MP4)
Break detect
All available manuals
High pressure coolant through spindle
Shower coolant / gun wash APC side
Synchronous control Y
Vertical backlash
Tape storage 320M
APC pallet wait rotation
APC safety guard
Pallet SI watch
ATC auto door
Sub-program
Inductosyn scale B-axis
Add-pattern cycle
Point calculation
High-cut pro
3D R-simulation
Sequence stop
Coordinate calculation
Coordinate conversion
Program limit
PFC2 / WCS2
DNC T1
Common variable 200 sets
Graphic IMAP
NC OP monitor
Servo link NC axis
Servo link S axis
Renishaw part probe
Renishaw tool measurement probe
Number of pallets: 2
Pallet size: 24.8" x 24.8"
Table load capacity: 2,640 lb
Pallet center to spindle nose: 2.7" - 42.13"
Max workpiece dimensions: 39.37" x 39.37"
Spindle center to pallet: 1.96" - 37.4"
Spindle speed: 6,000 RPM
Spindle taper: CAT 50
Main motor: 40/30 HP AC
Cutting feed rate: 0.04 - 2,362 IPM
Rapid traverse X: 2,362 IPM
Rapid traverse Y: 2,362 IPM
Rapid traverse Z: 2,362 IPM
Automatic tool changer: 60 positions
Max tool diameter: 5.31" / 9.45"
Max tool length: 17.72"
Max tool weight: 55 lb
Machine weight: 57,200 lb
Fully tooled with approximately 80 tool holders
ChipBlaster 1000 PSI coolant through spindle system
