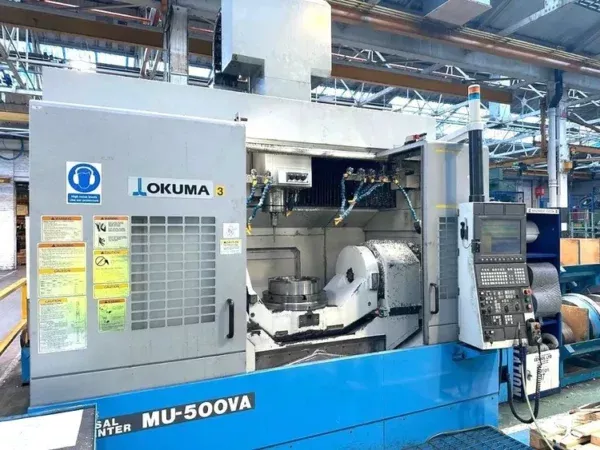

Okuma MU-500VA 5 Axis

X travel: 49.21″
Y travel: 25.98″
Z travel: 21.25″
A axis: +20° ~ -110°
C axis: 360°

Table surface to spindle nose: 5″–26.26″
Table size: Ø19.68″
Max workpiece size: Ø28.7″ × h19.68″
Floor to table top: 1073 mm
Max load capacity: 500 kg
Control: OKUMA OSP P200M-H
Spindle speed: 15000 rpm
Turning specification C axis table: 1000 rpm
Spindle motor (10 min/cont): 11/7.5 kW
Tool taper: 7/24 taper No.40
Tool shank type: MAS BT40 Big Plus
Retention knob type: MAS 2
Tool magazine: 32 stations
Rapid traverse X-Y: 40 m/min
Rapid traverse Z: 32 m/min
Rapid traverse A-C: 18000 deg/min
Cutting feedrate X-Y-Z: 32 m/min
20″ rotary platen
4th and 5th axis built-in trunnion
Coolant through spindle
Tool length measuring
32-position automatic tool changer
