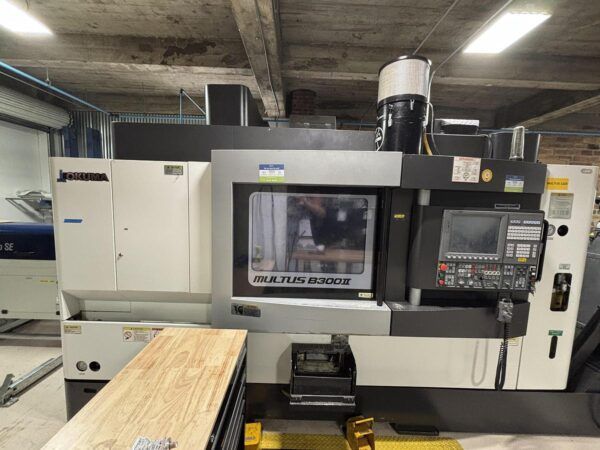

Okuma MULTUS B300II 5 Axis

X-Axis Travel 22.83″
Y-Axis Travel +/- 3.15″
Z-Axis Travel 35.51″
W-Axis Travel 39.37″
B-Axis Travel 30 to +195 degree
B-Axis Indexing 0.001 degree
CNC Control OSP-P300S
Main Spindle Bar Size 3.15″
Main Spindle Bore 3.93″
Main Spindle Chuck Size 10″
Main Spindle Speed 5,000 RPM
Main Spindle Power 30 HP
Main Spindle Nose A2-6
Sub Spindle Bar Size 3.15″
Sub Spindle Bore 3.94″
Sub Spindle Chuck Size 8″
Sub Spindle Speed 6,000 RPM
Sub Spindle Power 15 HP
Milling Spindle Speed Max 12,000 RPM
Milling Spindle Taper Capto C6
Automatic Tool Changer Capacity 120
Machine Size 142.52″ x 87.01″ x 101.66″
Machine Weight 17,820 lbs
Sub Spindle
Big Bore Option 3.15″ Bar Capacity
Tool Presetter
Parts Catcher
Edge Rebel 102 Bar Feeder
Spindle Liners
Hinge Type Chip Conveyor
MP Systems 1000 PSI Coolant Thru Spindle
Royal Filtermist FX1200 Mist Control Unit
Coolant Tanks with Flood Pumps
Chiller Unit
Transformer
Renishaw Tool Probe (RMI-Q)
Royal Collet Chuck on Main Spindle
Various Capto C6 Tooling
