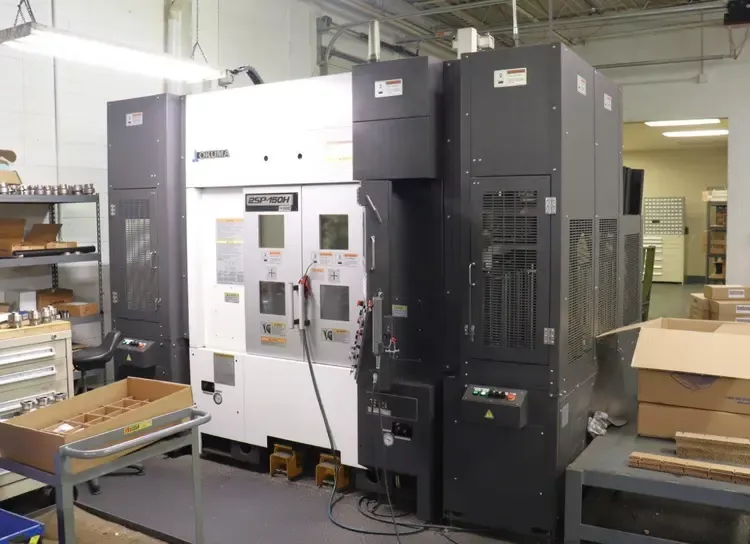

Okuma OSP P300LA CNC Color Control 4,500 RPM 2SP-150 HM 6 Axis

OKUMA 2SP-150 HM
2018

Machining Length 3.15"
Chuck Size 1 8"
Chuck Size 2 8"

Spindle Nose 1 5.51"
Spindle Nose 2 5.51"
Turning Diameter 5.91"

Spindle Speed 1 4,500 RPM
Spindle Speed 2 4,500 RPM
Spindle Power 1 15 HP
Spindle Power 2 15 HP
Spindle Bore Diameter 1 1.65"
Spindle Bore Diameter 2 1.65"

X1 Axis Travel 5.91"
X2 Axis Travel 5.91"
Z1 Axis Travel 6.1"
Z2 Axis Travel 6.1"
C1 Axis Travel 0.001"
C2 Axis Travel 0.001"

Rapid Traverse X1 945 IPM
Rapid Traverse X2 945 IPM
Rapid Traverse Z1 945 IPM
Rapid Traverse Z2 945 IPM

Turret Configuration 1 12 Station
Turret Configuration 2 12 Station
Turret Rotary Tool Speed 1 6,000 RPM
Turret Rotary Tool Speed 2 6,000 RPM
Turret Rotary Tool Power 1 3.6 HP
Turret Rotary Tool Power 2 3.6 HP

Number of Axes 3
Tailstock No
Live Tooling Yes
Sub Spindle No
Control OSP P300LA CNC Color Control
Machine Weight 11,100 lbs

3500 Cutting Hours Only
Rear Chip Conveyor
Universal Transformer
Chuck Open/Close
Auto Moon Cover Open/Close
Chuck Air Blow
Tool Life Management Function
Inch/Metric
Gantry Load OGL-3 FG E-Kit (2) Twin 16 Station
Workpiece Capacity 5.91" Diameter x 3.15" Long, 6.6 lbs
Chuck Miss Detect Air
Combination Jaws for Loader
Combination Jaws for Turnover
Turret Air Blow
(2) 8" 3-Jaw Hydraulic Chucks
(2) C-Axis Indexing 0.001°
Through Turret Coolant
OSP P300L CNC Control System
