Okuma OSP-P300S 3D-M-E kit API Library 2 – off status 3800 rpm MULTUS B300 II W 5 Axis

X-axis travel 580 mm (560 + 20 mm)
Z-axis travel 935 mm
Y-axis travel 160 mm (+/- 80 mm)
C-axis 360°
B-axis 225° (-30 / +195)

Turning diameter 300 mm
Turning length 900 mm
Max turning diameter 630 mm
Distance between tips 935 mm

Main spindle speed range 3800 rpm
Main spindle bearing diameter 100 mm
Main spindle bore 62 mm
Main spindle drive power 15/11 kW
Sub spindle included
2 pcs. 10” chucks

Milling spindle speed range 12000 rpm
Milling spindle drive power 11/7.5 kW
Milling spindle diameter 80 mm
Milling spindle max torque 85/58 Nm
Milling spindle tool holder CAPTO C6
Milling spindle swivel range 225°
Milling spindle ATC 1 position

Tool turret 1 position
Shank diameter 25 mm
Drill shank diameter 40 mm
Tool magazine 60 positions
Max tool diameter 90 mm
Max tool length 300 mm
Max tool weight 8 kg

Rapid traverse X/Y/Z 40/26/40 m/min
Feed range 0.001–1000 mm/min
Rapid traverse C axis 200 rpm
Rapid traverse B axis 30 rpm
Total power requirement 42.3 kVA
Machine weight 10.3 t
Machine dimensions 5.0 x 3.0 x 2.7 m

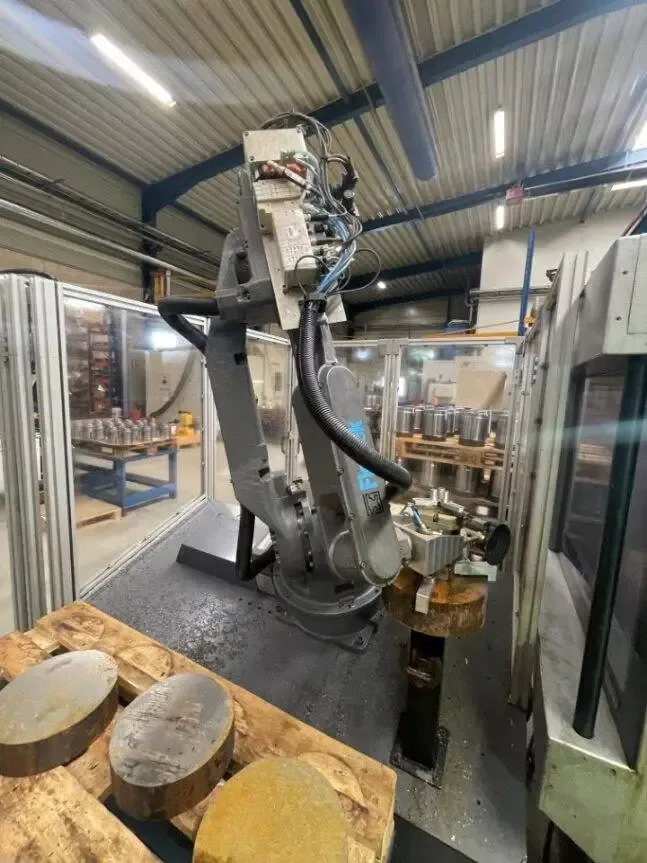

Robot Motoman, 20 kg handling
Robot dimensions 2.1 x 2.8 m
