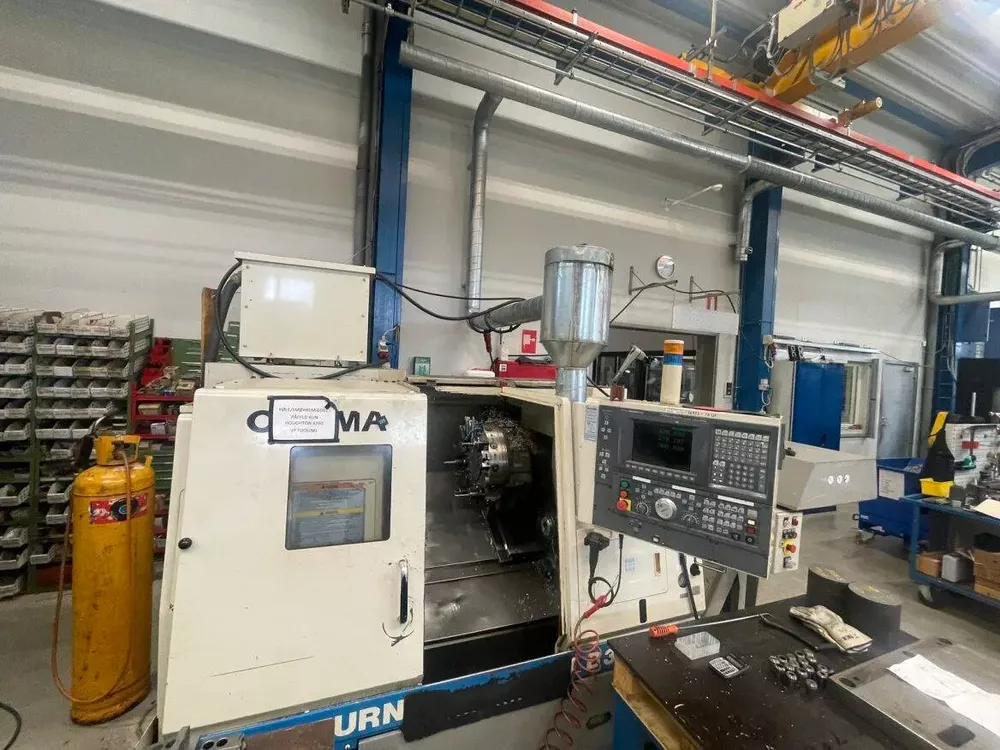

Okuma OSP-U100L 3800 rpm LB300-M 2 Axis

X Axis Stroke: 280 mm
Z Axis Stroke: 1020 mm
Rapid X Axis: 20,000 mm/min
Rapid Z Axis: 25,000 mm/min
Incremental X Z Axis: 0.001–1000 mm
Control: OSP-U100L
Max Turning Diameter: 370 mm
Max Turning Length: 1000 mm
Center Distance: 1020 mm
Spindle Nose: ASA 8
Spindle Speed: 3800 rpm
Spindle Bore Diameter: 64 mm
Spindle Power: 15/22 kW
Turret Type: VDI 40
Turret Stations: 12
Square Tool Section: 25 mm
Stretcher Section: 40 mm
Driven Tool Speed: 45–4500 rpm
Driven Tool Power: 3.3 kW
Chip Conveyor
Presetting
Self-Centering 250
Machine Dimensions (LxWxH): 4500 x 3000 x 2700 mm
Machine Weight: 5500 kg
