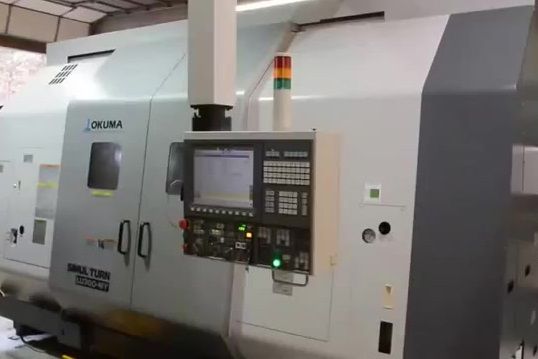

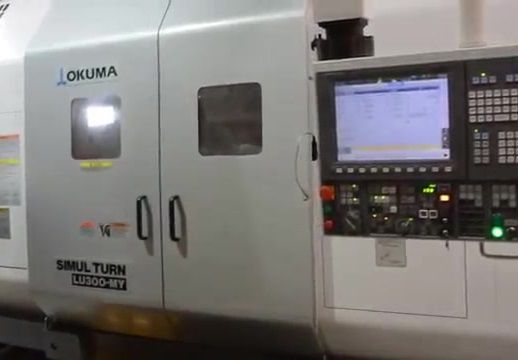

Okuma SIMULTURN LU-300MY

Swing Over Bed .............................. 20.87"
Swing Over Saddle ........................... 16.14"
Distance Between Centers .................... 39.37"
Max Turning Diameter ........................ 13.39"
Max Working Length .......................... 39.37
Axis Travel:
XA............................................10.24"
ZA............................................40.00"
XB............................................ 5.51"
ZB............................................38.00"

C Axis ...................................... 360 Degree
Spindle Speeds .............................. 38 ~ 3,800 RPM
Speed Ranges .................... Infinitely Variable X Auto Range
Nose ................................. Option A2-8 Big Bore
Bore Diameter ............................... 3.14"

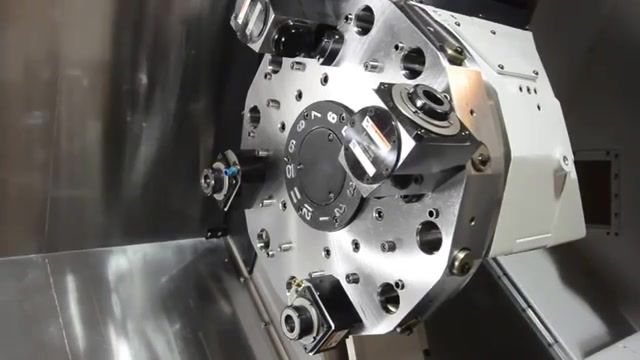

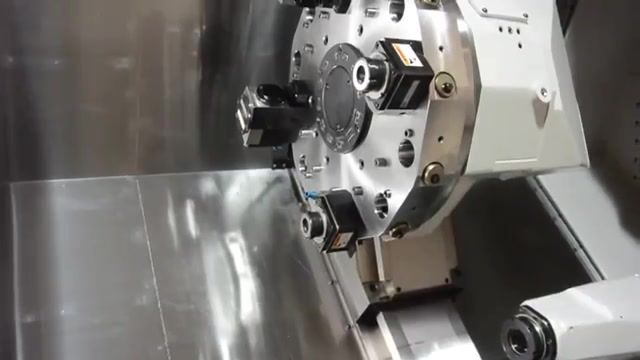

Turret Upper Multitasking ................... V-12 NC Turret
Lower ....................................... V8 (VDI)
Indexing Time Non-Lift ...................... 0.18 Sec
Live Tool Speeds ............................ 45 ~ 4,500 RPM
Feedrates X/Z/C ............................. 787/984/200
Tailstock Quill Diameter .................... 3.54"
Quill Bore Taper ............................ MT#5
Quill Travel ................................ 4.72"
Main Drive Motor ............... 30-HP 304 Ft-LB Torque
Live Tool Motor ............................. 9.5 HP
Machine Weight .............................. 19,360 LBS
