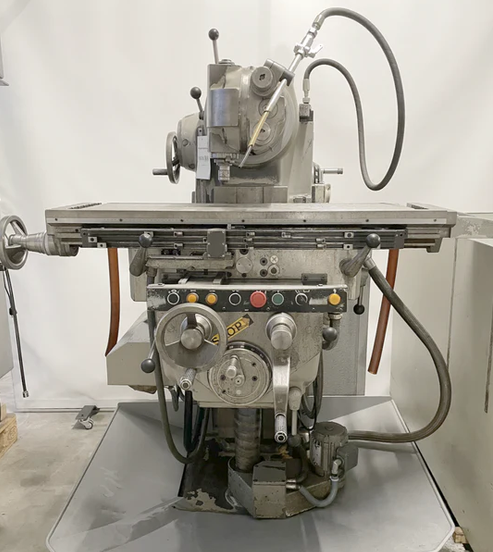

Schaublin 53 N 1510 rpm

X-axis travel: 700 mm
Y-axis travel: 250 mm
Z-axis travel: 490 mm
Rapid traverse X-axis: 3.5 m/min
Rapid traverse Y-axis: 3.5 m/min
Rapid traverse Z-axis: 1.7 m/min
Table size: 1100 × 305 mm
Spindle speed: 38–1510 rpm
Spindle speed steps: 18
Spindle taper: ISO 40
Longitudinal feed: 12–1050 mm/min
Transversal feed: 12–1050 mm/min
Vertical feed: 6–525 mm/min
Motor power: 5.5 CV
Total power: 8 CV
Electrical supply: 380 V / 3 Ph / 50 Hz
Machine dimensions: 1800 × 1600 × 1800 mm
Machine weight: Approx. 2100 kg
Coolant system
Cam control
Steady
Set of collets
Set of short cutter arbors
Set of toolholders
Tool cabinet
Chucking clamps
