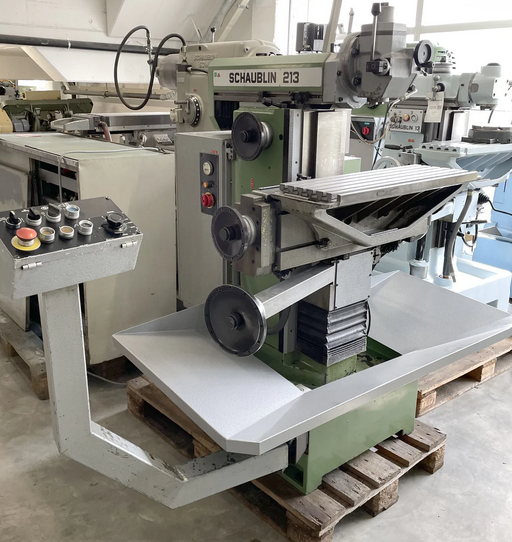

Schaublin 213 3150 rpm

Table Length: 700 mm
Table Width: 250 mm
Longitudinal Travel (X-axis): 320 mm
Transversal Travel (Y-axis): 220 mm
Vertical Travel (Z-axis): 410 mm
Vertical Quill Travel: 60 mm
Spindle Speed Range: 56–3150 rpm
Spindle Taper: ISO 30
Feed Range (X/Y/Z): 8–1000 mm/min
Rapid Traverse (X/Y/Z): 2 m/min
Motor Power: 1.8 kW
Total Power Required: 3 kW
Voltage: 3x 380 V, 50 Hz
Machine Weight: approx. 1000 kg
Machine Dimensions (L×W×H): 1800 × 1200 × 1500 mm
Accessories: Lamp
Accessories: Chip Tray
