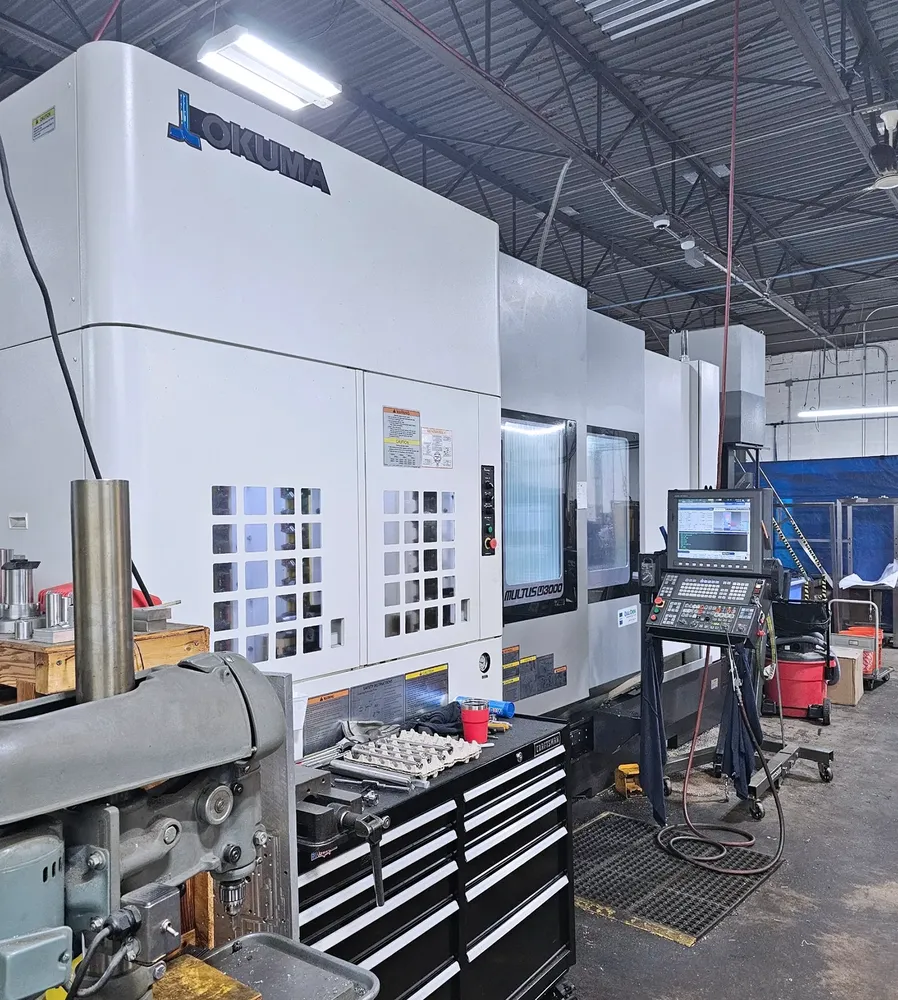

Okuma U30002SW/1500 5 Axis

X-axis travel: 25.39"
Y-axis travel: 9.84" (+/-4.92")
Z-axis travel: 62.99"
Rapid traverse X-axis: 1,968 in/min
Rapid traverse Y-axis: 1,574 in/min
Rapid traverse Z-axis: 1,969 in/min
Y-axis
Full 5-axis contouring B-axis milling spindle
Control: Okuma OSP-P300SA-L THINC
Renishaw RMP600 auto-gauging probe
Automatic tool presetter
Chip conveyor
Bar capacity: 3.1"
Swing over bed: 25.59"
Maximum cutting diameter: 25.59"
Maximum cutting length: 59.06"
Spindle nose: A2-8
Spindle motor: 30 HP
Spindle speed: 4,200 RPM
Sub spindle
Milling spindle speed: 12,000 RPM
2-speed gearbox
Royal QG-80 collet chuck (main)
Royal QG-65 collet chuck (sub)
C-axis synchronization on both spindles
80 tool positions
Bed length: 60" (1500 mm)
