Omag CONF/DOS/ 03/1

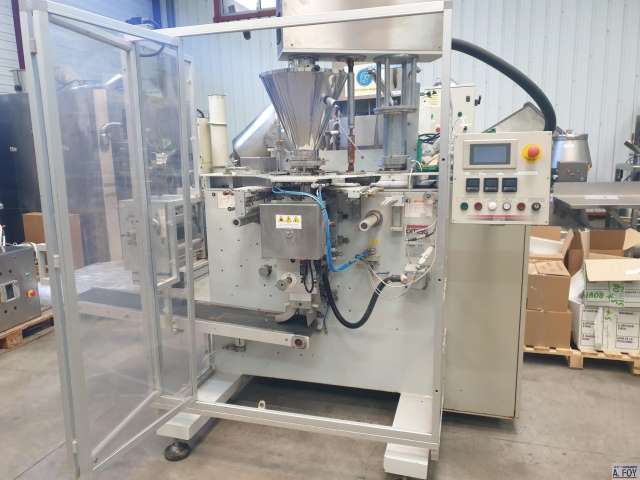

Vertical form, fill, and seal pouch machine
Weight : 1200 kg
Dimensions :
(L x W x H) 2.20 x 1.70 x 2.30 M

Equipped:
- Film reel holder.
- Station for cutting finished bags using rotating knives.
- Longitudinal sealing station from 50 to 220 mm. Powder dosing station with 80 liter hopper, endless screw and 1 nozzle diameter 15 mm.
- Horizontal sealing station with cutting knives from 50 to 130 mm.
- Evacuation of finished bags on a PVC belt conveyor length 2500 mm - width 400 mm.
- General training by motor-variator.
- Touch screen control box.
- Adjustable temperature regulator, maximum temperature 240°C.
- Protective casings with security on the doors.

Capacity:
Bag dimensions:
- Minimum width 50 mm - maximum 130 mm
- Minimum height 50 mm - maximum 220 mm
- Maximum web width: 500 mm
- Maximum production: Approximately 100 sachets/minute depending on the nature and volume of the product.

Total electrical power: 8 kW
Maximum air pressure: 6 bar
