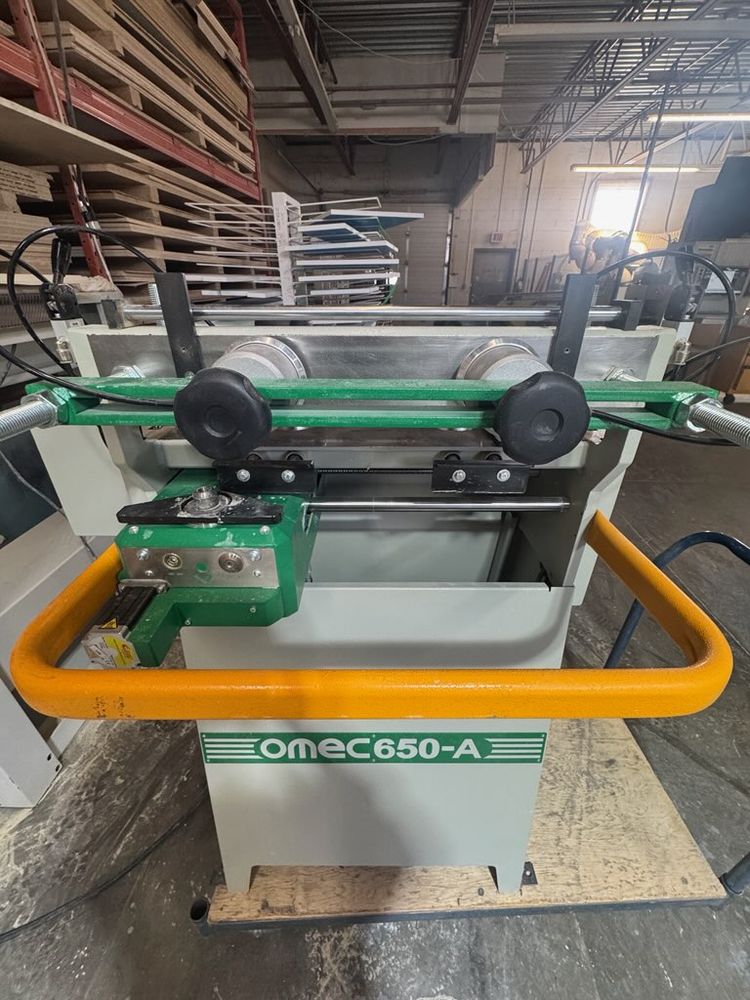

Omec 650 A

Voltage 600V / 3ph / 60 Hz
Condition Excellent
This two-axis automatic mill cutter with numerical control is designed to indent dovetails and parallel indents for drawers and furniture elements.

Features and Specifications:
On board machine installed power: 1.7kw
Working pressure: 0.7 MPa
Spindle: 1
Spindle revolutions: 16,500 RPM
Center tot center of indents: 1" - 2" (25-50 mm)
Drawer production: 40 per hour
Dimensional Limits of Workpieces:
Length: min. 7.9" / max. 59"
Width: min. 2.4" / max. 15.7"
Indent height: min. 0.33" / max 0.63"
Front thickness: min. 0.31" / max. 2.4"
Side thickness: min. 0.28" / max. 0.98"
