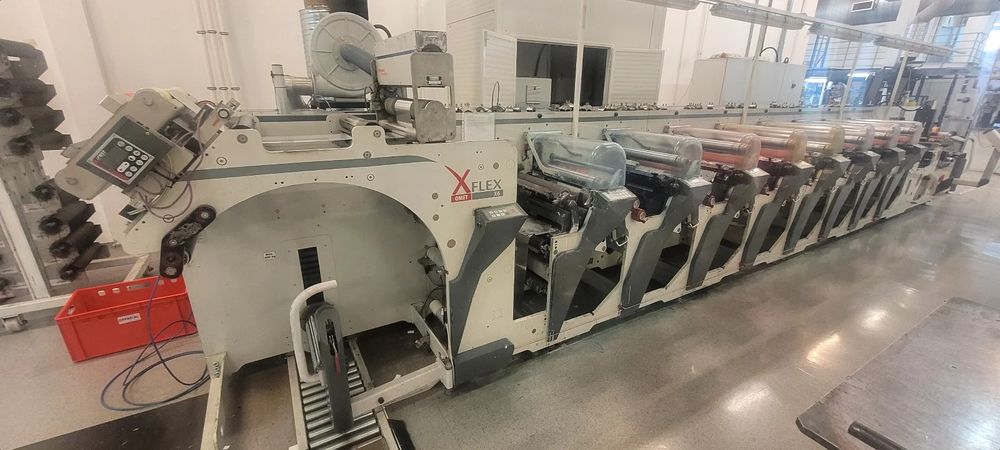

OMET X-FLEX X6 430 430 mm

Maximum speed (dependent on printing size): 660 FPM - 200 m/minute
Maximum web width: 430 mm (17")
Flexo Printing repeat range: 12" - 25"
Flexo Printing repeat range (only reel to reel): 304,8 - 635 mm
Maximum flexo printing width: 420 mm (16" ½)
Substrate thickness range: 12 micron - 250 gr/sqm
Web tension: 4-30 kg
Main PLC Schneider Electric
Drivers and motors Emerson - Control Techniques
Standard machine voltage 400/480 V AC three-phase
+ 50/60 Hz. + Earth
Regulations "CE" Mark
1 Basic press XFlex X6 430 for the printing of filmic and pressure sensitive stock

Complete of:
- Automatic tension unwinder, for rolls up to 1000 mm (40") diameter, with integrated roll pick up from the floor
- Servo-driven infeed section, with automatic web tension control
- Servo-driven outfeed section with independent motor
- Mounting frame for slitting systems (not included, quoted separately)
- Pair of web break detectors
- Single shaft rewinder, with independent motor for constant tension control, for rolls up to 1000 mm (40") diameter, including integrated roll discharge system.
- Operator Interface, through a touch screen panel
- Unwinder and rewinder 450 kg
SERVODRIVEN AND GEARLESS FLEXO PRINTING UNIT
8 SHAFTLESS and GEARLESS Direct Drive flexo printing unit, complete with sleeve system plate change over.
