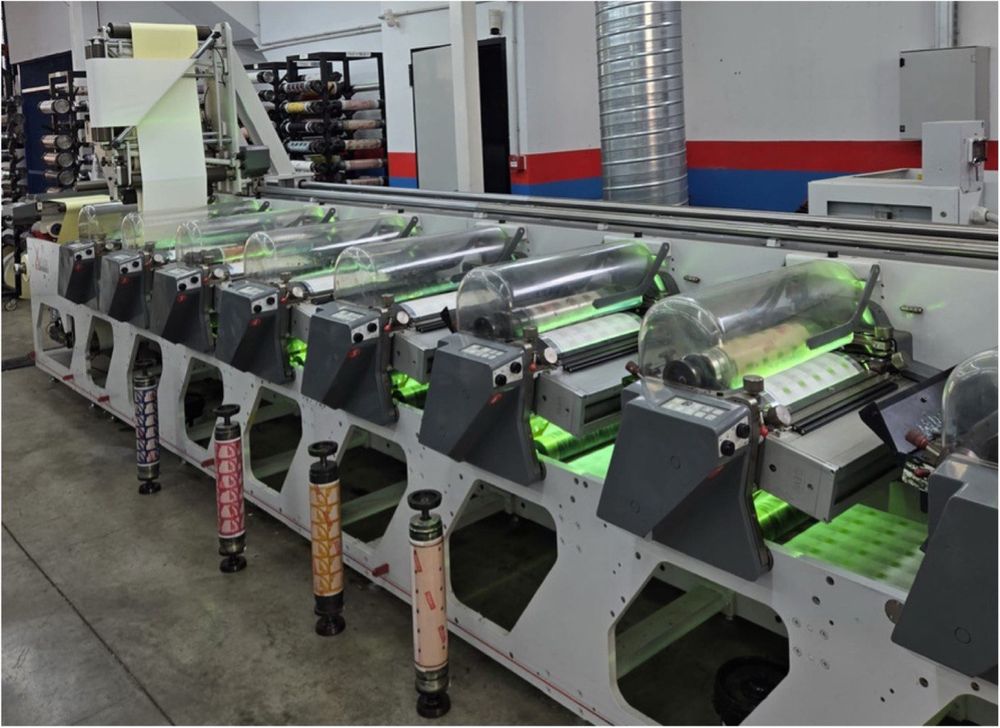

OMET XFLEX X4 370 360 mm

Technical data :
Max mechanical speed: 190 mpm (630fpm)
Max. web width: 370 mm (14"4/8)
Flexo Printing repeat range: from 5,5" to 24"
Maximum flexo printing width: 360 mm (14"1/8)
Maximum die cutting width: 360 mm (14"1/8)
Die cutting repeat range: from 8" to 24" (suggested form 12")
Substrate thickness range: min 12 micron (0,5 mil) only PET - max. 250 gr/m²
Standard machine voltage: 400 V AC three phase + 50 Hz + Earth

Automatic tension unwinder, for rolls up to 1000 mm(40") diameter,with integrated roll pick up from the floor
Servo driven infeed section,with automatic web tension control
Web guide
DUAL SERVO flexo printing stations with chilled impression cylinder for straight through short web path
Automatic pre-register 360°
Outfeed and rewinding section with 1 shaft for 760 mm (30") maximum reel outer diameter standard, 2nd rewinding shaft optional
Rock'n'Roll "Dual Function" stripping station, 760 mm (30") maximum waste roll diameter, complete with servo motor
Longitudinal slitting system, scissorcut type, complete with 3 blades assembly,
Operator Interface, through touch screen panel
Videocamera
Rail system for movable finishing options
Print on print automatic intelligent register system VISION, for both cross axis and machine axis, without any operator interference on the press and regardless his skills (STANDARD)
