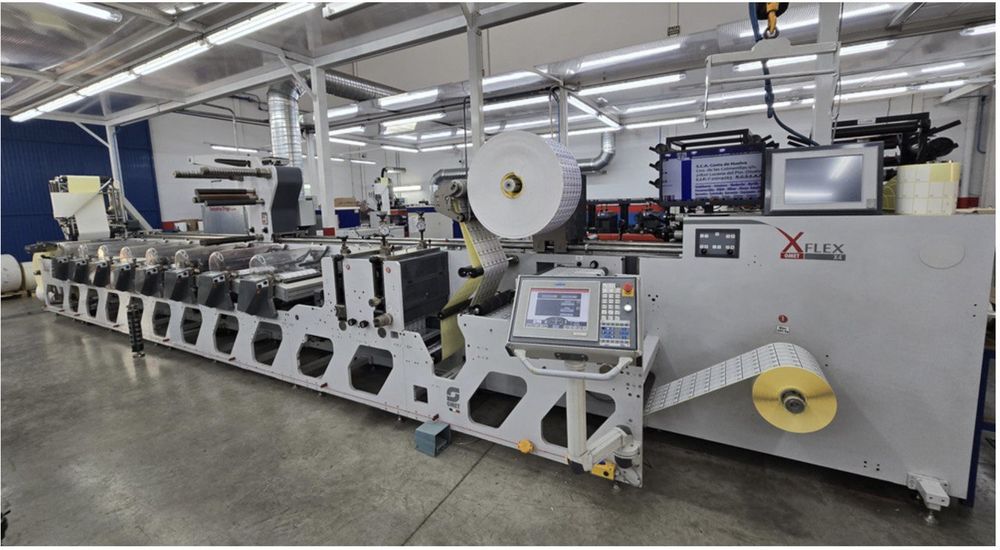

OMET XFLEX X4 370 370 mm

Technical data:
Max mechanical speed: 190 mpm (630fpm)
Max. web width: 370 mm (14"4/8)
Flexo Printing repeat range: from 5,5" to 24"
Maximum flexo printing width: 360 mm (14"1/8)
Maximum die cutting width: 360 mm (14"1/8)
Die cutting repeat range: from 8" to 24" (suggested form 12")
Substrate thickness range: min 12 micron (0,5 mil) only PET - max. 250 gr/m²
Web tension: max. 30 kg
Drivers and motors: Emerson - Control Techniques
Standard machine voltage: 400 V AC three phase + 50 Hz + Earth
Regulations: "CE" Mark

Automatic tension unwinder, for rolls up to 1000 mm(40") diameter,with integrated roll pickup from the floor
Servo driven infeed section,with automatic web tension control
Web guide
