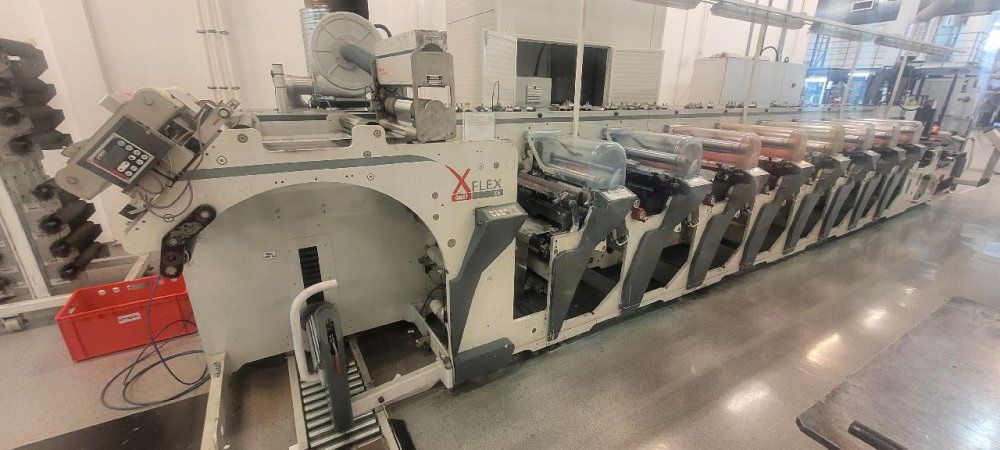

OMET Xflex X6 430 8 420 mm

Number of colors 8
Overhaul/renovation In 2020 the machine was retrofitted with a newest IST UV drying system
Web width (mm) 430
Print width (mm) 420
Print repeat range (mm) Flexo Printing repeat range (only reel to reel) from 304,8 to 635 mm
Drying IST UV drying system
Unwinder Automatic tension unwinder, for rolls up to 1000 mm diameter, with integrated roll pick up from the floor
Rewinder Single shaft rewinder, with independent motor for constant tension control, for rolls up to 1000 mm diameter

Substrate thickness range: min 12 micron ( 0,5 mil) , Up to 250 gr/m²
Main PLC Schneider Electric 23 aniloxes : 1x 460 L/cm 2.9cm³/m², 5x 460 L/cm 3.0cm³/m², 1x 460 L/cm 3.5cm³/m²,
2x 280 L/cm 5.0cm³/m², 2x 280 L/cm 5.1 cm³/m², 1x 400 L/cm 4.5 cm³/m², 1x 200L/cm 6.2 cm³/m², 2x 200L/cm 6.5 cm³/m²,
1x 180 L/cm 7.3 cm³/m², 2x 180 L/cm 7.5 cm³/m², 1x 180 L/cm 8.0 cm³/m², 2x 180 L/cm 8.5 cm³/m², 1x 180 L/cm 8.6 cm³/m², 1x 120 L/cm 9.2 cm³/m²
Print sleeves : 8 x 309,04 16 x 380,471 40 x 389,467 46 x 386,292 8 x 500,063 5 x 369,888 10 x 464,079 5 x 512,233
8 x 419,629 8 x 490,008 32 x 309,04 8 x 320,675 8 x 350,838 8 x 377,296 16 x 380,471 16 x 389,467 16 x 428,62
8 x 449,792 8 x 532,342 8 x 386,292 8x400,579 8 x 459,846
