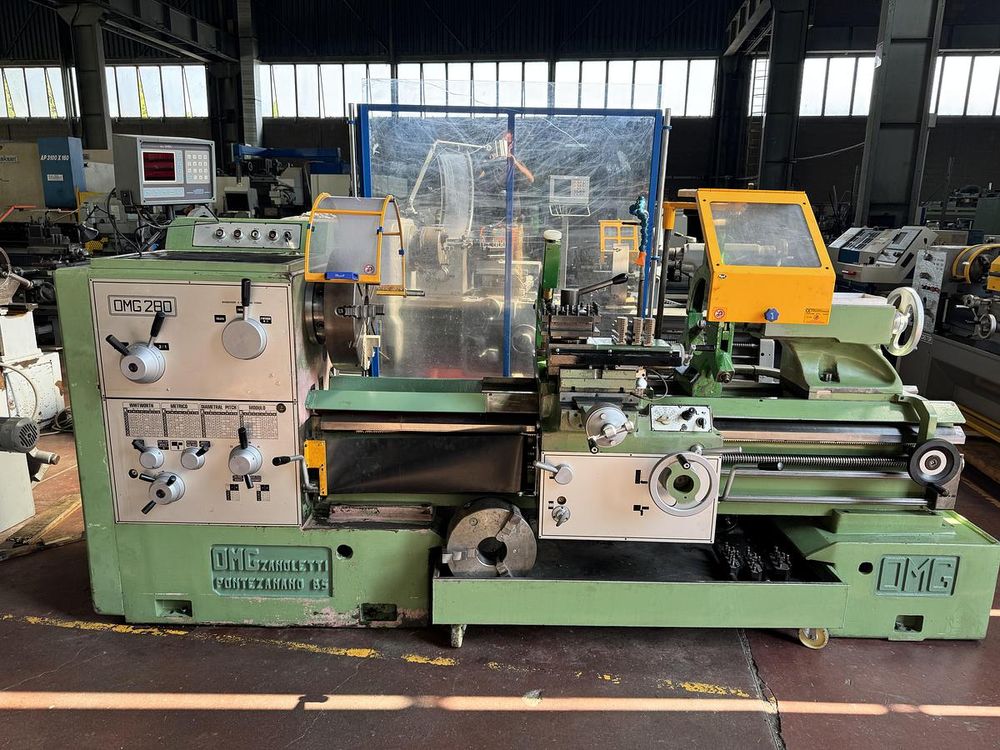

OMG Zanoletti Engine Lathe 1300 rpm ZANOLETTI OMG 280

OMG ZANOLETTI OMG 280

Technical data
Center height: 280 mm
Swing over bed: 560 mm
Swing over cross slide: 350 mm
Swing in gap: 770 mm
Distance between centers: 1500 mm
Bar capacity (spindle bore): 105 mm
Spindle nose: CAMLOCK 8"
Spindle speed range: 25 – 1300 rpm
Number of spindle speeds: 12
Cross slide travel: 320 mm
Tool carriage travel: 150 mm
Number of longitudinal feeds: 72
Number of cross feeds: 72
Tailstock quill diameter: 75 mm
Tailstock quill stroke: 220 mm
Tailstock taper: Morse taper 5 (MT5)
Main motor power: 7.5 HP (approx. 5.6 kW)
Machine weight: 2800 kg
2-axis digital readout
Tool turret
3-jaw chuck diameter: 310 mm
4-jaw chuck diameter: 450 mm
Fixed steady
Travelling steady
Coolant system
