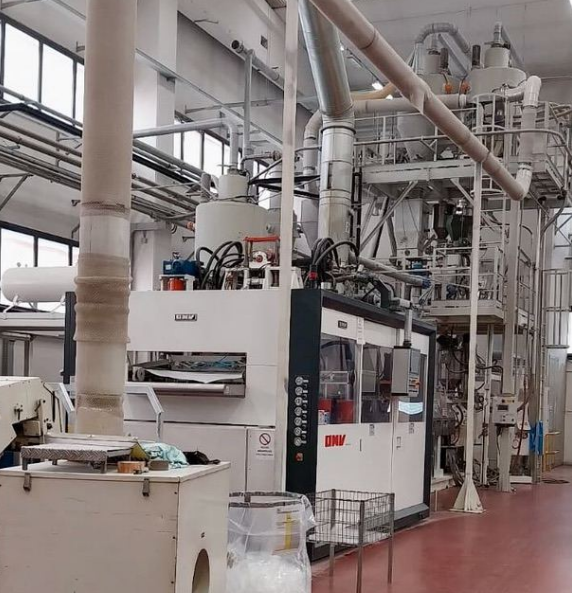

OMV CO-EX with Thermoforming and CMG Web-Grinder

in production until 2022. Now in store dismantled.

Complete line to produce round plates in, consist of:
Dosing unit from Engiplast. Gravimetric.
With this system the line is receiving the material directly from Silo's and
it is possible to get other materials from Big-Bag as well with screw from
side silo. The gravometric system can get 4 different materials.
Before the final material comes on extruder, is moved by
an Engiplast system which keep the pressure directly on
the screw of extruder stabilize.
In this way the extruder will never run without material and
control the pressure on the screw.
Main Extruder OMV with The Dirve of from ABB type 250L-2 year 2013
with 440 V, 615 A, and 315. Screw diameter 120 mm and L/D 33.
7 air blowing cooling zones and heating zones.
BT Plast Screen Changer hydraulic and automatic with pump
Co-Extrusion OMV year 2013, with the drive on is ABB Type DMP 160-4M,
52 kW, 460V, 125.2A. Screw diameter 60mm.
BT Plast Screen Changer hydraulic and automatic with pump.
Maag Melt pump
Feed Box for ABA system
Flat Flex Lip Die 1400 mm
OMV Thermoforming machine included with calander
5x Chilling units for calander and tool.
STS packaging unit model N26P, year 2013
Web-Grinder CMG type: 1200/TR-NX, year 2013 with blower and
Silo to return the flakes directly into the Extrusion line.
