OE - HT-04 4604 Open end

Specifically designed for producing:
Technical yarn or high-quality soft twist coarse yarn in the range of Ne 0,6 - Ne 4
Our machines are available with 48 - 72 - 96 and 120 spinning positions, tailored to production needs.
Production is approx. 6 tons / day for Ne 0,6 and 5 tons for Ne 0,8.
Yarn count range from Ne 0,6 – Ne 6 to produce:

Raw material for example:
- Cotton waste
- Recycled fibers
- Aramid blends
- Wool / Polyester, Wool / Acrylic, Wool / Polyamid,
- Cotton and all kinds of cotton blends,
- Acrylic and acrylic blends,
- Viscose or polypropylene
- Recycled PET fibres
for - Mop yarn
- Blanket yarn
- Technical coarse yarn
- Yarn for filtration,
- carpet backing
- bath mats
- cleaning cloths - etc.

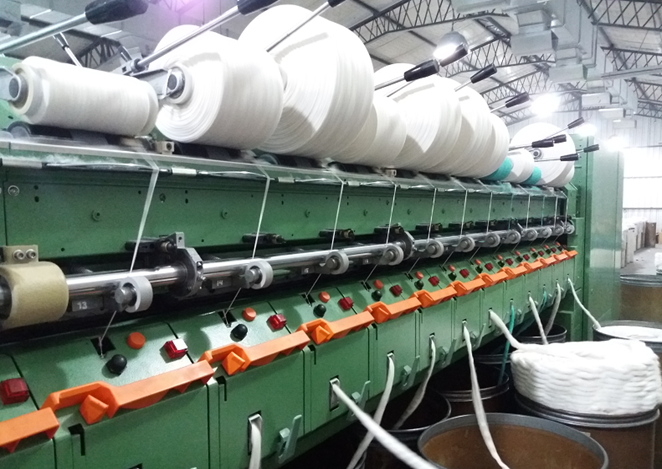

HT04 during production of cotton waste blend
An example for mop yarn Ne 0,8 or Ne 0,6

YOC: 2026
Type: OE - HT-04 4604
Positions: 72 rotors
Type of rotor: Alu 92 mm round
Rotor speed: 9.000 rpm - 30.000 rpm adjustable with an inverter
Delivery speed: 75 m/min - 100 m/min
T/m: 140 - 450
Count range Ne 0.6 - Ne 4 (depending on material)
Tube: metal

Nozzle: 2 sets: ceramic 8 grooves / ceramic 4 grooves
Opening rollers: OS21
Opening roller speed: 5.000 - 9.000 rpm
Delivery: on cylindrical tubes, D54 x 170 mm
Voltage: As required
Power consumption: approx.: 70 kw/h (start-up) and 40 kw/h (running)
Air output: 4.600 m3/h
Under pressure rotor: 60 - 75 mbar
Machine length: 12.338 mm
Extras: Inverter drive for rotor speed
