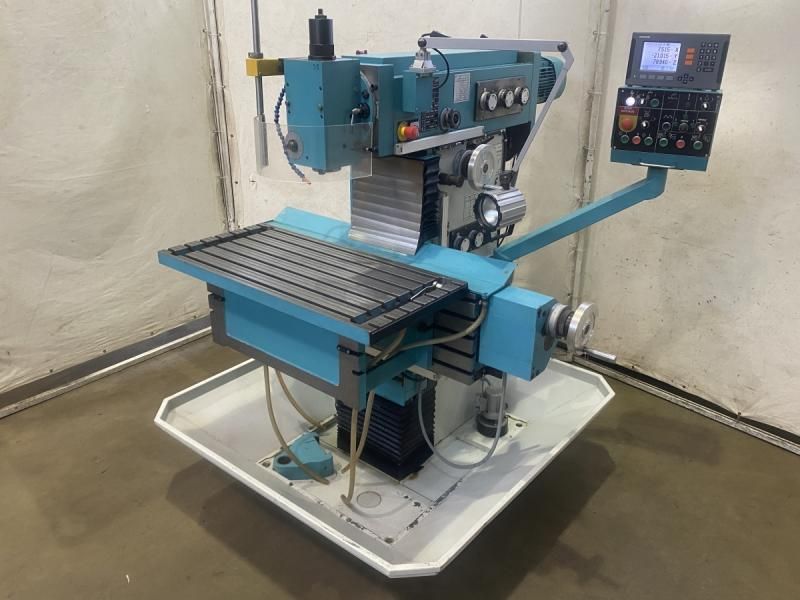

Oradea EURO-MILL STIMIN FUS 32 Vertical 2000 rpm

X-axis travel: 560 mm
Y-axis travel: 320 mm
Z-axis travel: 400 mm
Vertical head quill stroke: 100 mm
Rapid traverse speed: 1400 mm/min
Spindle speed: 25–2000 rpm
Number of spindle speed steps: 18
Feed rate: 5–400 mm/min
Number of feed steps: 18
Main spindle motor power: 3 kW
Power supply: 400 V / 50 Hz / 10 kW
Table size: 950 x 450 mm
Spindle taper vertical head: ISO 40
Spindle taper horizontal spindle: ISO 40
Tool clamping thread: M16
Machine dimensions (L x W x H): 1800 x 1600 x 1800 mm
Machine weight: 1650 kg

Features / equipment
Universal tool milling machine
3-axis digital readout
HEIDENHAIN ND 780 glass scales
Vertical milling head
Vertical head swiveling ±90°
Manual tool clamping
Horizontal milling support bearing Ø 48 mm
Central lubrication system
Electrical cabinet mounted on machine
Coolant system integrated in machine base
Machine work light
2 tool holders included
Operating manual with electrical documentation
