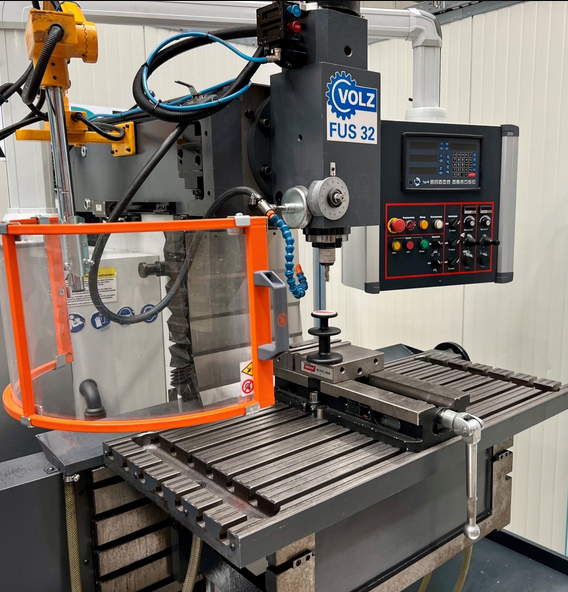

Oradea, Volz FUS 32 Vertical 2000 RPM

Ref : 2810724-3-AW

Condition : Used

Manufacturer : Oradea, Volz

Model : FUS 32

Type : Vertical

Spindle Speed : 2000 RPM

Year(s) : 2016

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-axis travel: 560 mm
Y-axis travel: 320 mm
Z-axis travel: 400 mm
Feed rate: 5–600 mm/min
Rapid traverse: 1200 mm/min
Table size: 950 × 450 mm
Table size: 320 × 1000 mm
Table load: 125 kg
Spindle speed: 25–2000 RPM
18 spindle speeds
Spindle taper: ISO 40
Quill stroke: 100 mm
Power: 5.4 kW
Machine dimensions: 1800 × 1500 × 1780 mm
Machine weight: 1780 kg
3-axis digital readout
Ball screws on X and Y axes
Rapid traverse on all 3 axes
Electromagnetic spindle brake
Coolant system
Chip tray
Vertical milling head
90° swiveling milling head
ISO 40 tool holder
Fixed box table
7 T-slots
T-slot width: 14 mm
T-slot spacing: 63 mm
Minimum spindle-to-table distance: 163 mm
Machine light
Column guide guard
Operator's manual
