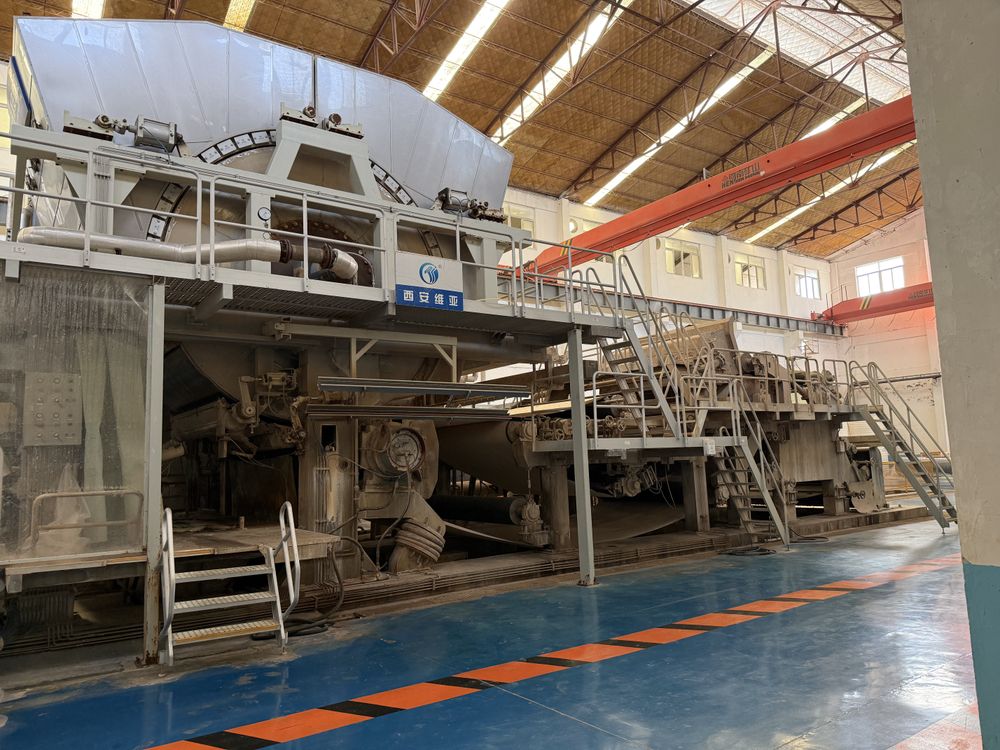

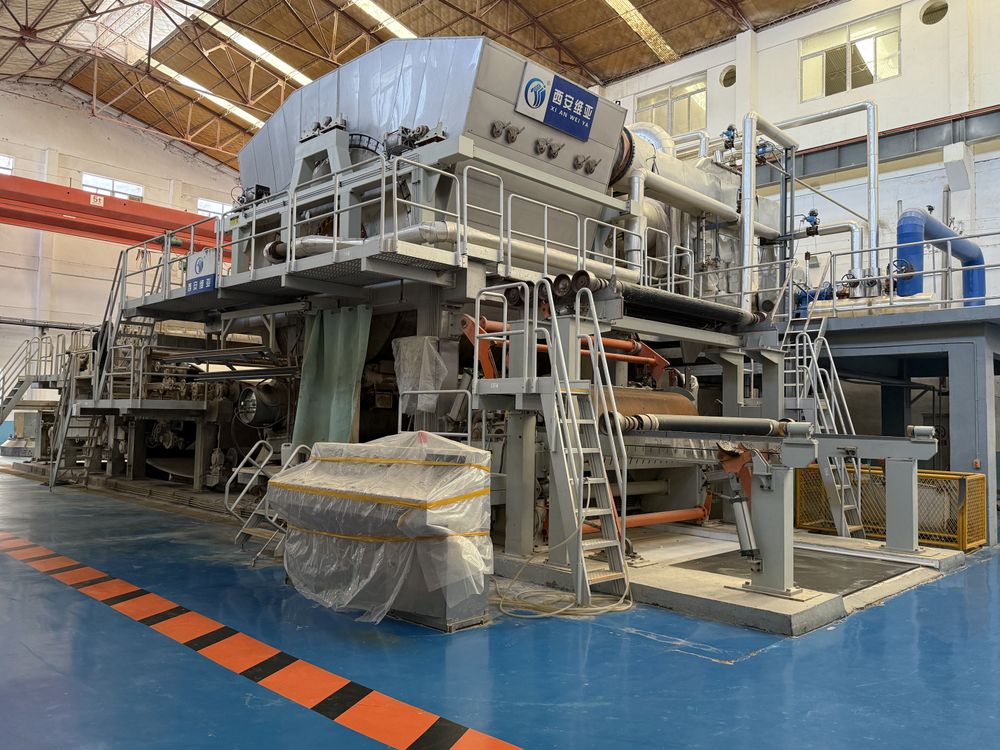

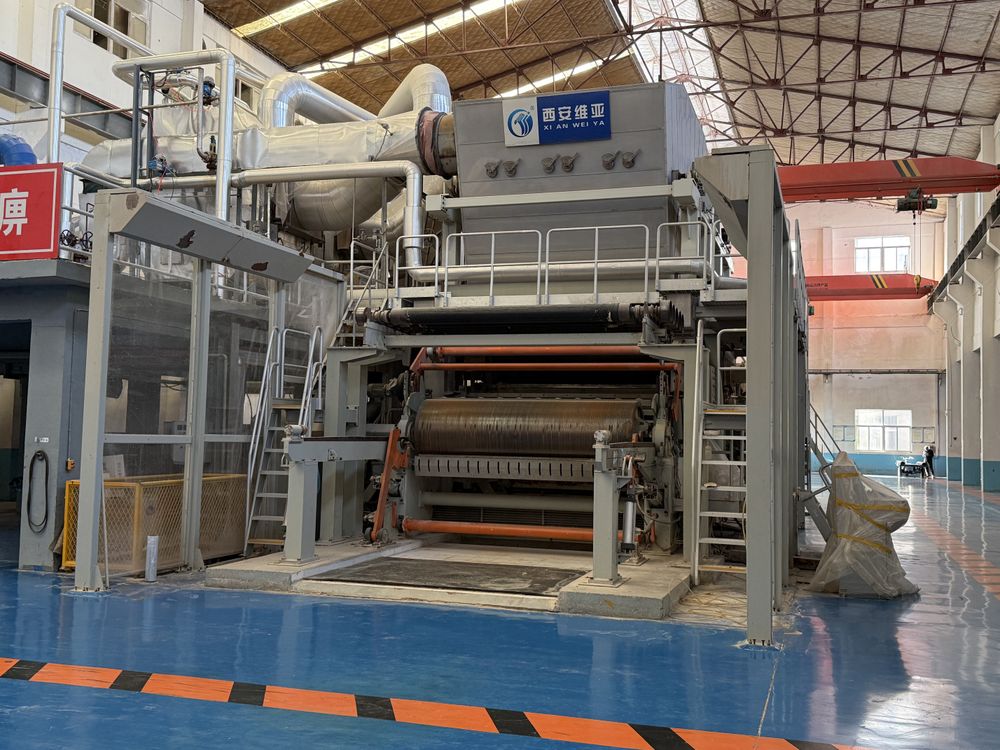

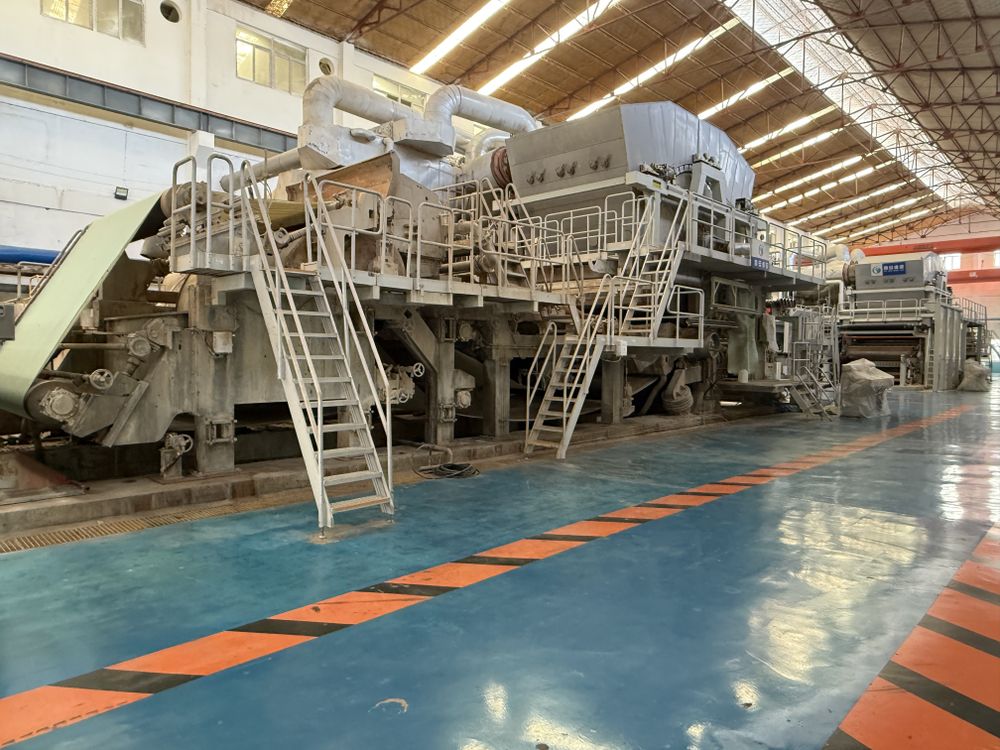

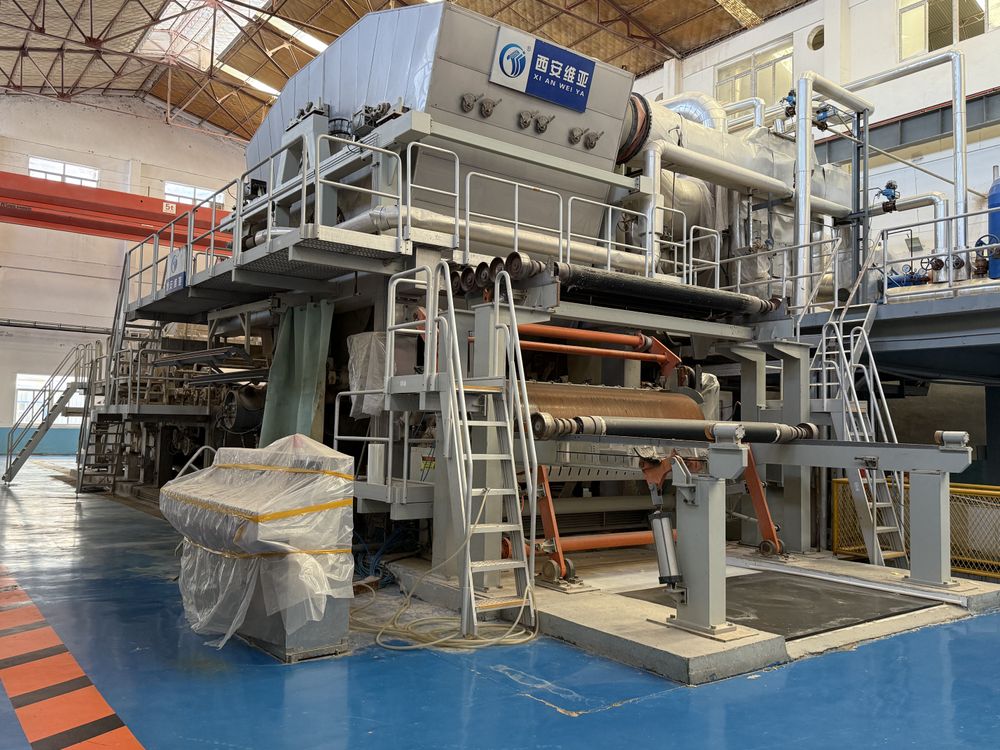

Other 2850/1300M/MIN crescent tissue machine 2850mm 14-28g/㎡ 47

Ref : 2767913-2-CP

Condition : New

Manufacturer : Other

Type : 2850/1300M/MIN crescent tissue machine

Width : 2850mm

Gramages Range ( Gsm ) : 14-28g/㎡

Capacity : 47

Year(s) : -

Quantity : 1

Location : Seller or machines location:
ASIA (China - Taiwan - HKG)

Paper variety: Facial tissue paper, toilet tissue paper
Ration: 14-28g/㎡
web width on reeler: 2850mm
Working speed: 1200m/min (dryer can)
Designed speed: 1300m/min
Dynamic balancing speed: 1300m/min
Main gauge：3600mm
Transmission: Ac frequency sectional drive
Main drive power: 408.5kw(only paper machine)
Capacity:45tpd
Yankee dryer dia:Φ3660mm
Yankee working staem pressure：0.8Mpa
Diameter of jumbo roll paper: Φ2500mm
Steam consumption：1.8-2T / T
Water consumption：3-5T / T（Can recycled）
Electric consumption：≤ 330kWh/t
Dimension: 18000×8000×6500 (L*W*H)
Type: Crescent forming paper machinery
