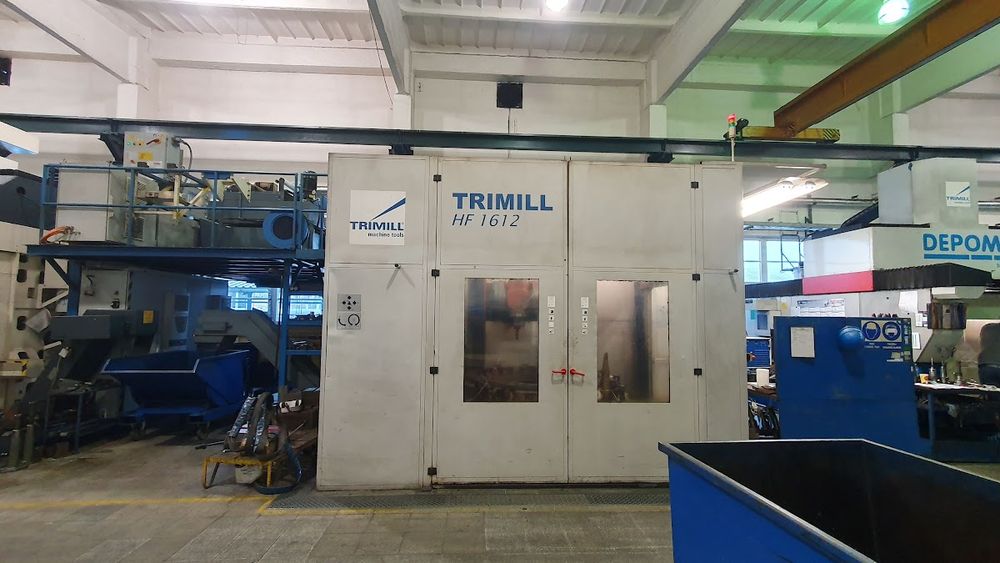

Other HF 1612

Year: 2010

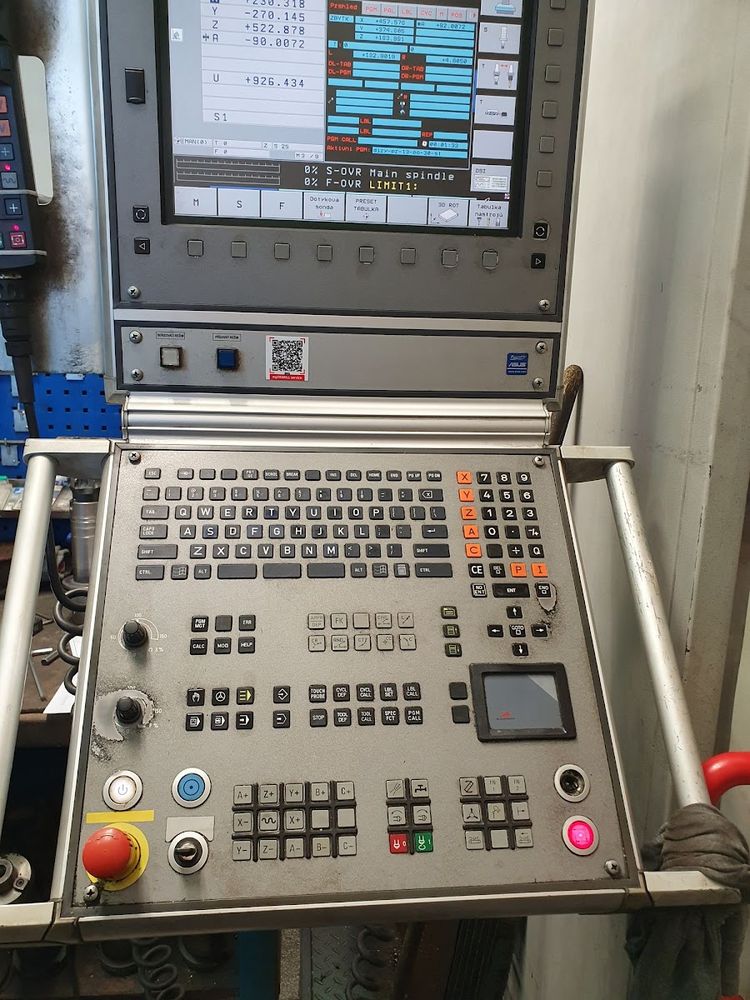

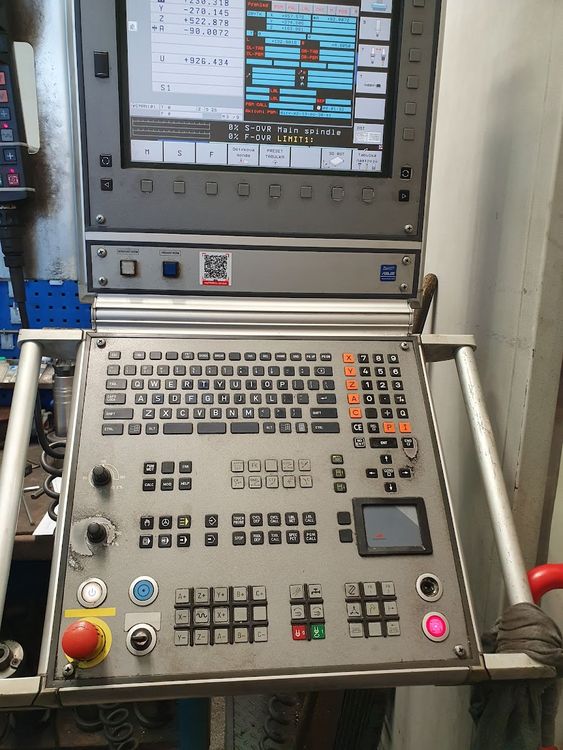

Control system Heidenhain TNC 530
Clamping area of table 2000x1750 mm
Travel X-axis 1600 mm
Travel Y-axis 1200 mm
Travel Z-axis 800 mm
Spindle speed 10 - 10000 /min.
Number of driven axes 5
Cooling through spindle YES
Pressure of cooling 50 bar
Spindle taper HSK-A100 .
Max. weight of workpiece 7000 kg
Max. torque of spindle 195 Nm

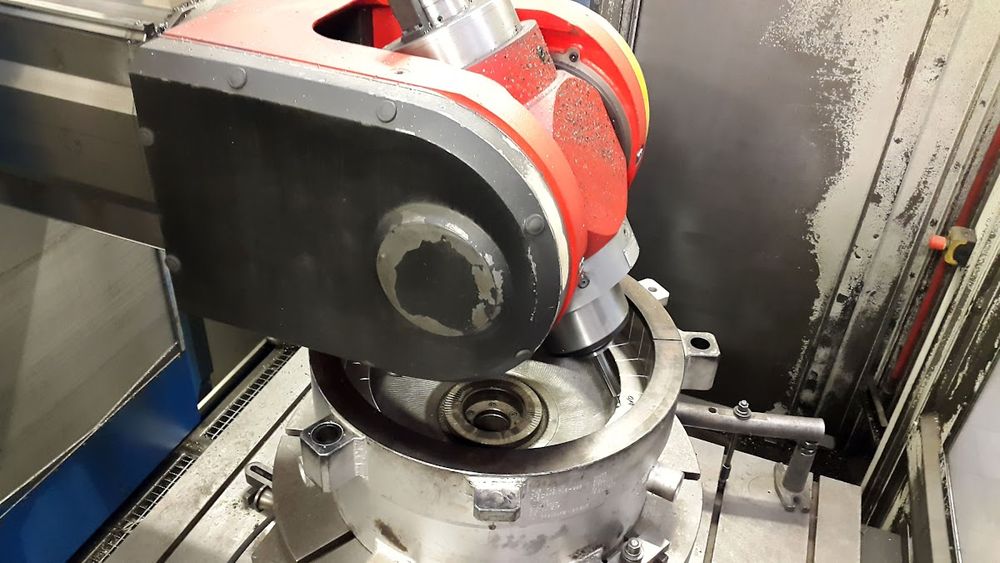

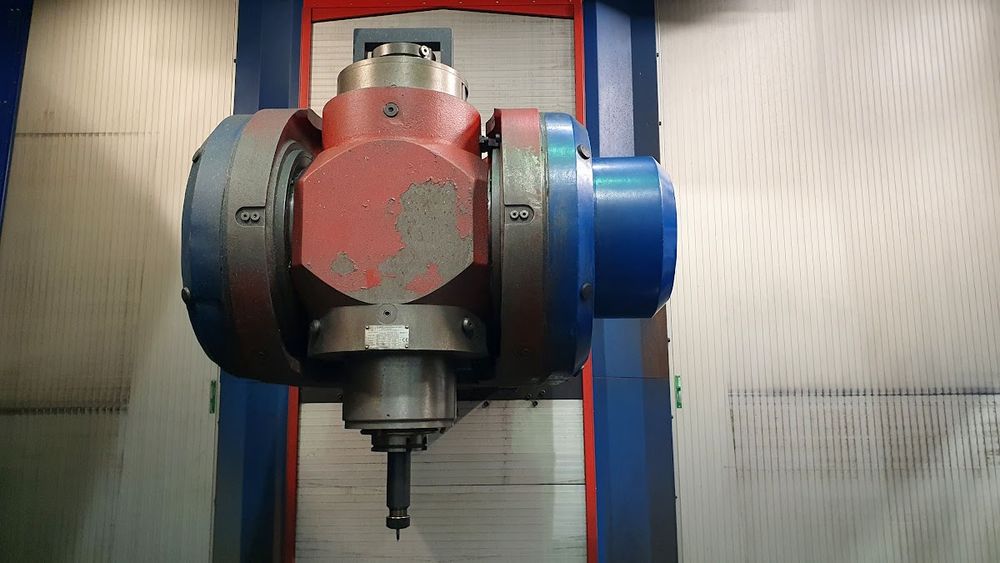

Axis C ±182 °
Axis A -2 / +92 °
Rapid feed 30 m/min
Tool magazine YES
Number of positions in magazine 12
Machine weight 43000 kg
Machine dimensions l x w x h 7430x5800x3590 m

The machine is in good technical condition, with the possibility of testing under power.

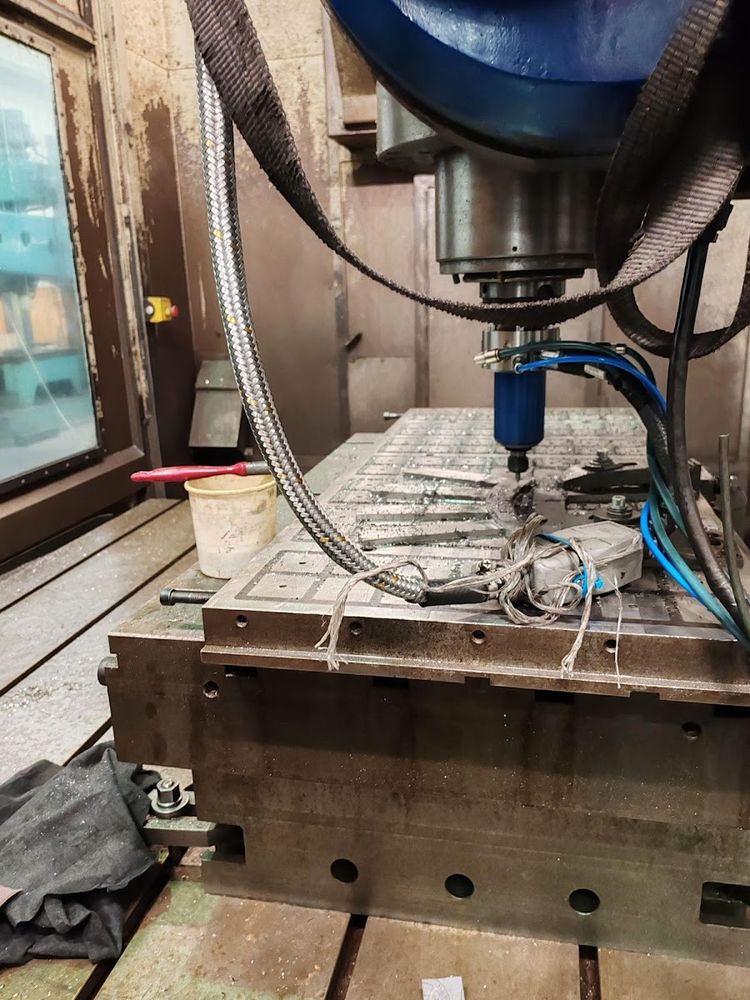

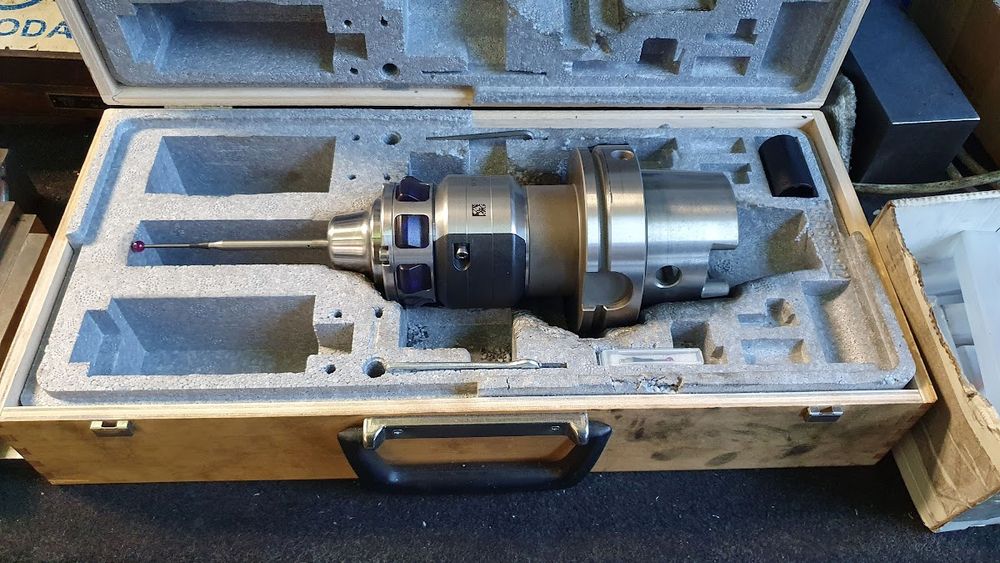

Accessories: workpiece probe, Jäger electric spindle (60,000 rpm), ISN 1000 CNC V additional rotary table, and angle plates.
