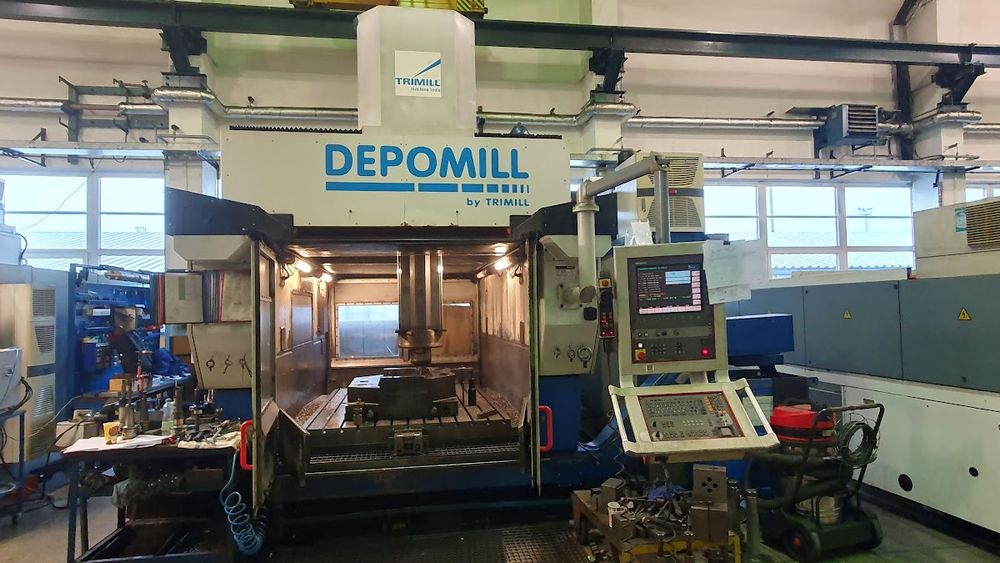

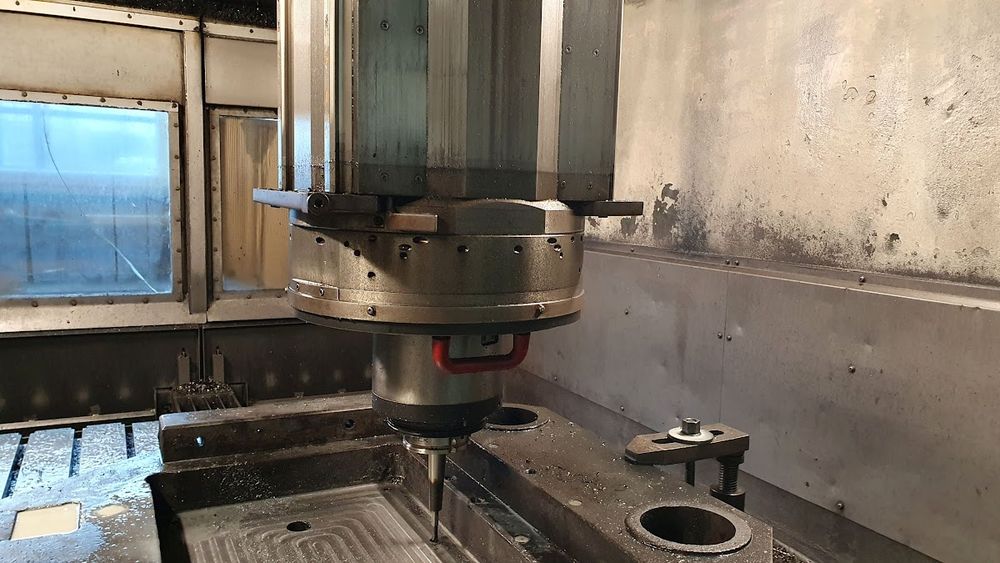

Other Trimill Depomill CUT 2012

Year: 2006

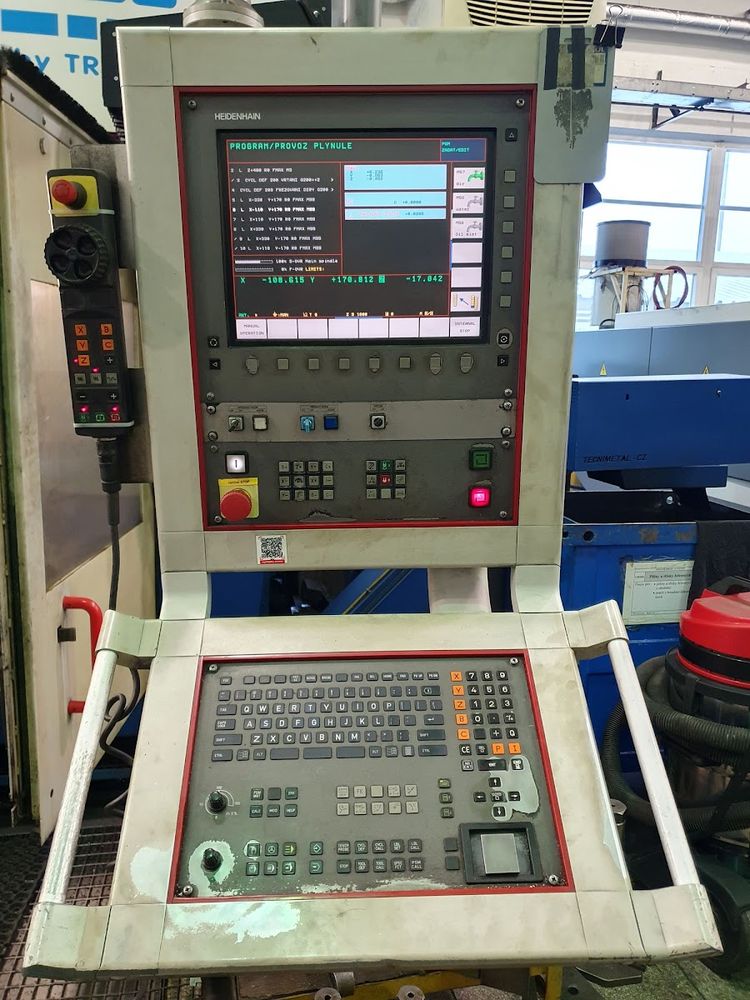

Control system Heidenhain TNC 530

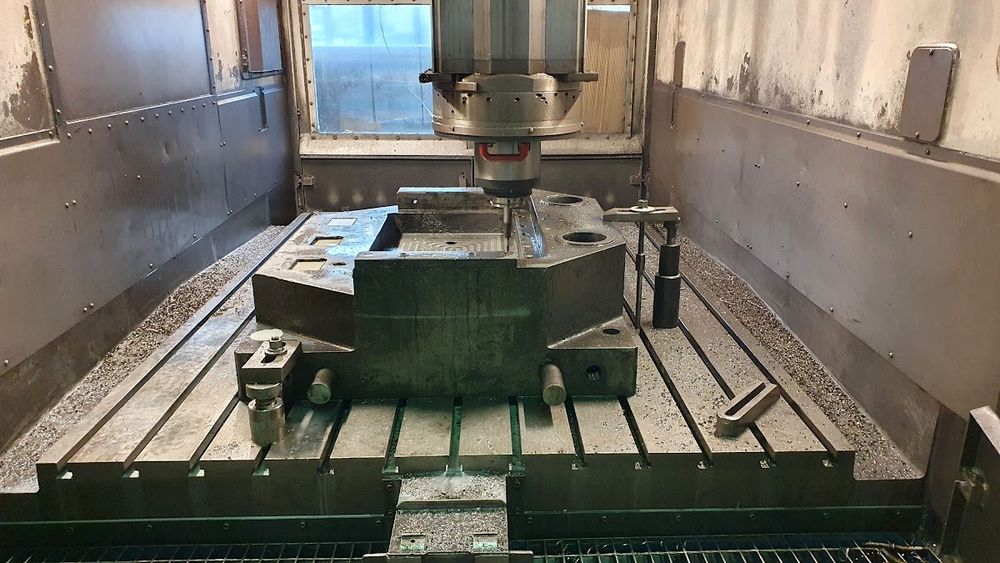

Clamping area of table 2300 x 1600 mm
Travel X-axis 2300 mm
Travel Y-axis 1200 mm
Travel Z-axis 800 mm
Spindle speed 30 - 12000 /min.
Number of driven axes 5
Cooling through spindle YES
Pressure of cooling 20 bar

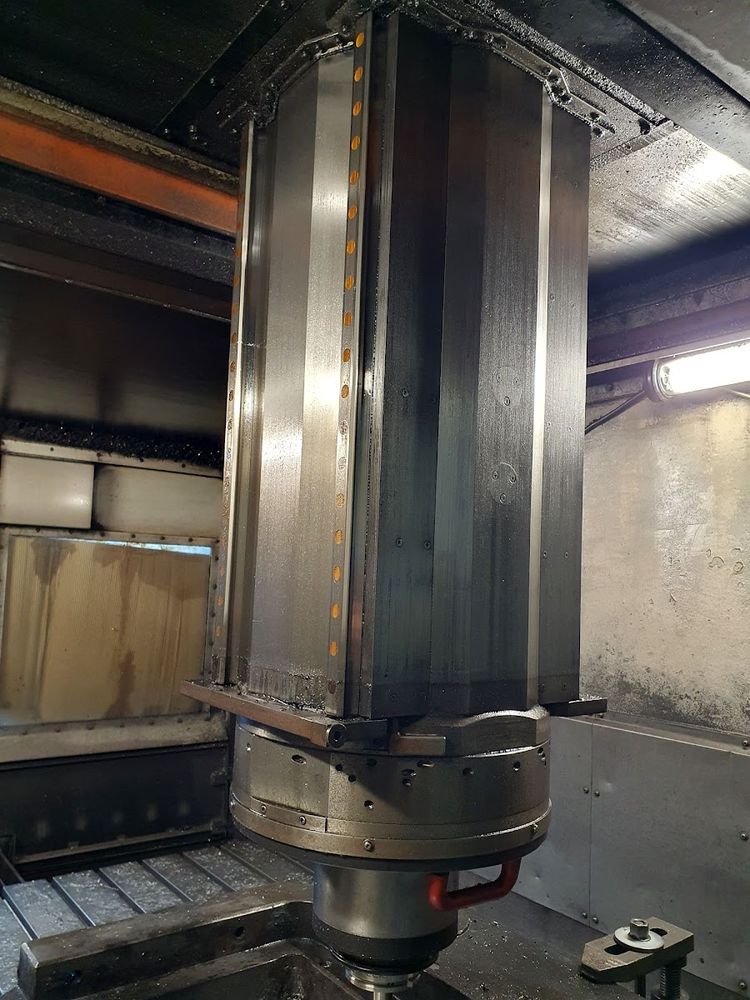

Spindle taper HSK 100 .
Max. torque of spindle 200 Nm
Tool magazine YES
Number of positions in magazine 10
Axis C ±185 °
Axis B + 60/-90 °
Rapid feed 30 m/min
Machine weight 23000 kg
Machine dimensions l x w x h 4800 x 4750 x 4660 mm

The machine is in good technical condition; testing under power is possible.

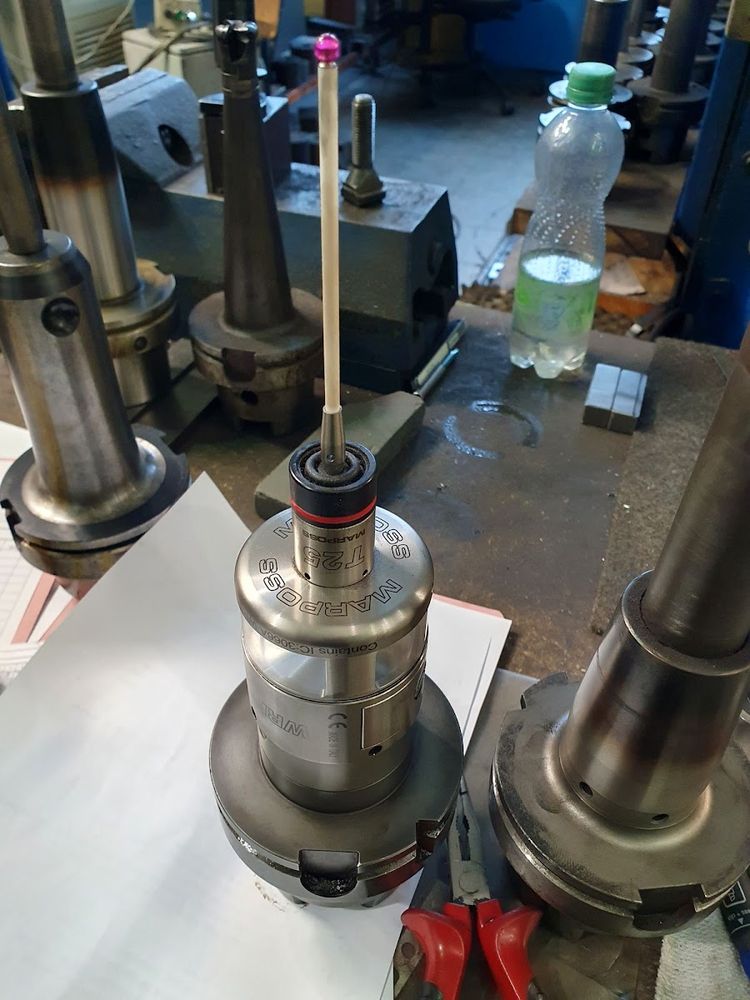

Accessories: workpiece probe, high-frequency universal spindle IMT 8kW / 30,000 rpm.
New spindle in 2024
