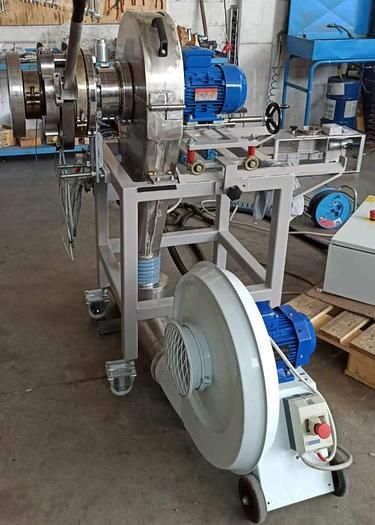

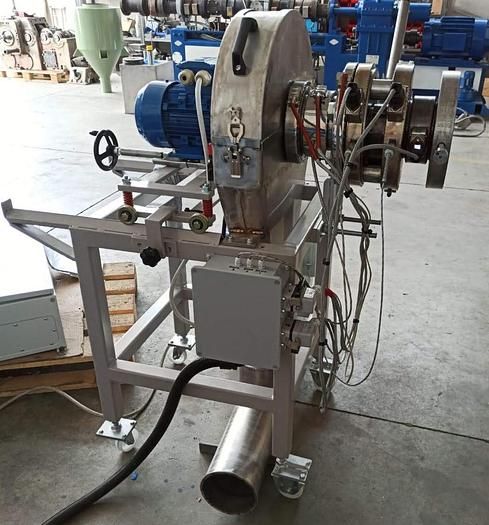

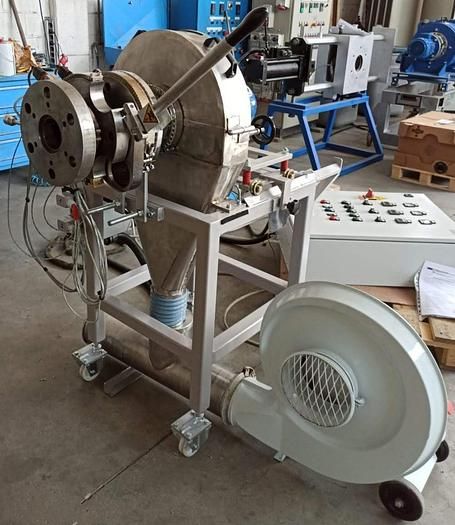

DRY PELLETIZER FOR PVC AND COMPOUNDS
Suitable for extruders with production rate up to 1.200 kg/h

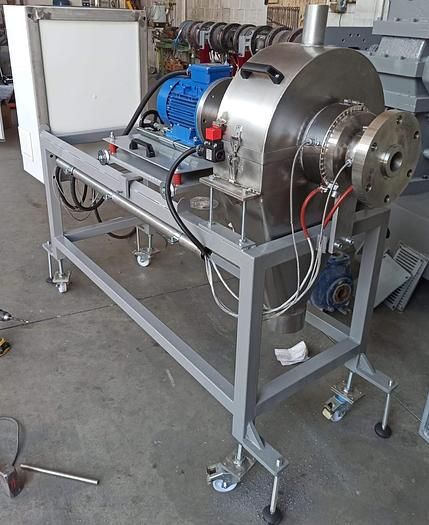

made in sturdy steel and mounted on a frame equipped with wheels for easy disassembly
granulating chamber in horizontal axis, built in stainless steel, quick opening and visual porthole
to check the granulated material

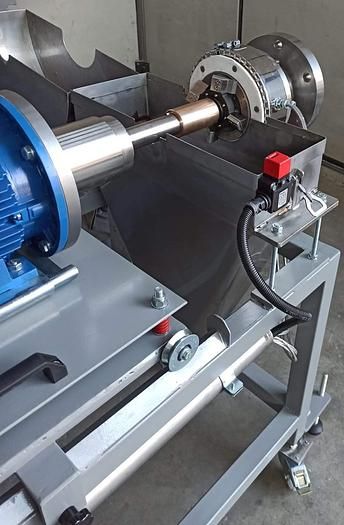

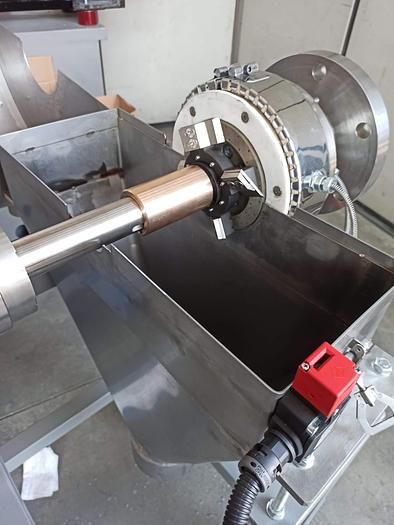

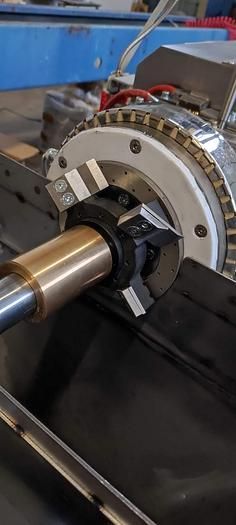

knife-holder with fluctuating star to reduce knives consumption.
self adjusting knives to nozzle by means of a slide system which keeps knives pressed on the die, reducing wear

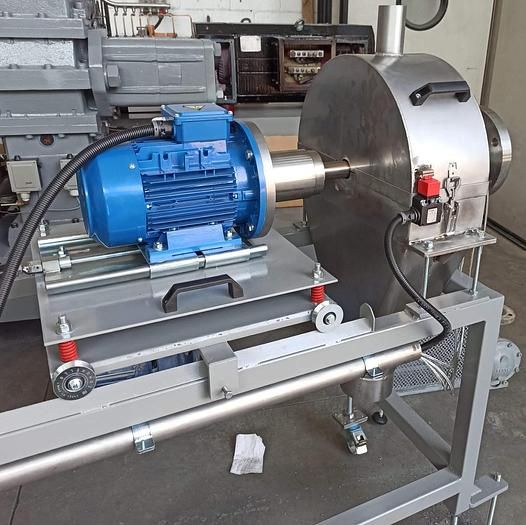

4 kw drive, 3.000 rpm with extra strong bearing and long shaft
cutting die in anti-wear steel with number and Ø of holes bespoke to project.
2,2 kw Venturi blowing system + pipes and cyclone
knife mounting template

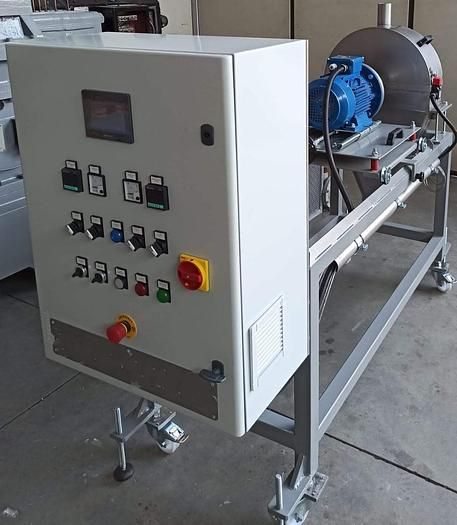

electric cabinet and touch screen control board with modem for remote assistance
3 mt.cable machine/panel
flange built to design to fit your extruder, heated by ceramic heating elements , temperature probe and protective casing
ca 6-8 weeks delivery
