DRY PELLETIZER FOR PVC AND COMPOUNDS
Suitable for extruders with production rate up to 200 kg/h

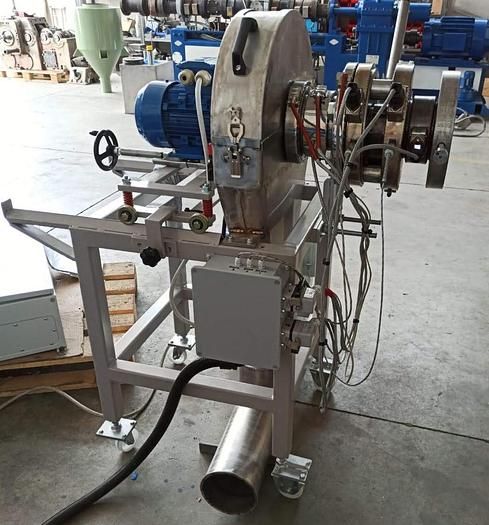

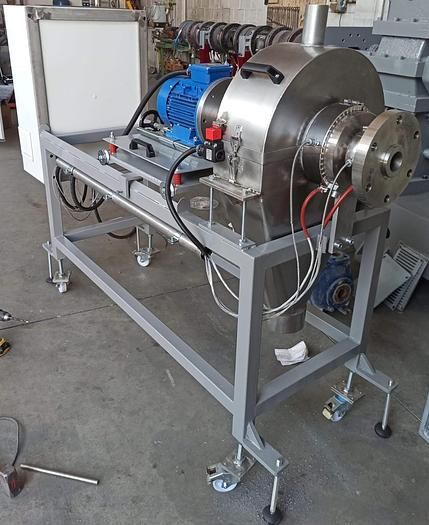

made in sturdy steel and mounted on a frame equipped with wheels for easy disassembly
granulating chamber in horizontal axis, built in stainless steel, quick opening safety device

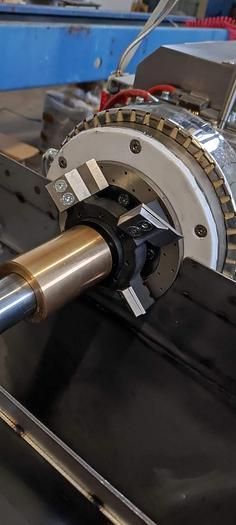

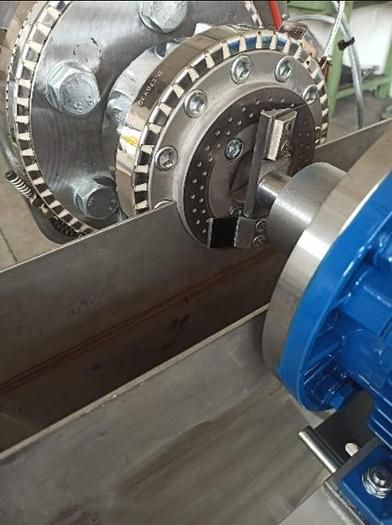

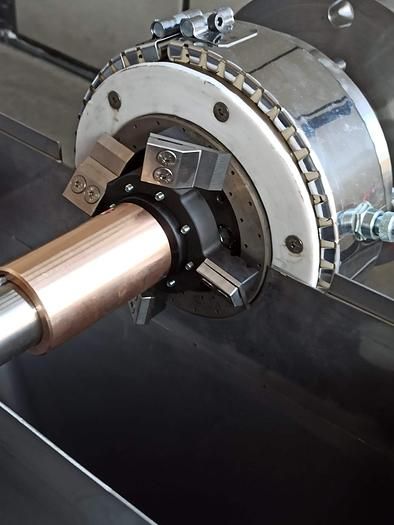

knife-holder with fluctuating star to reduce knives consumption.

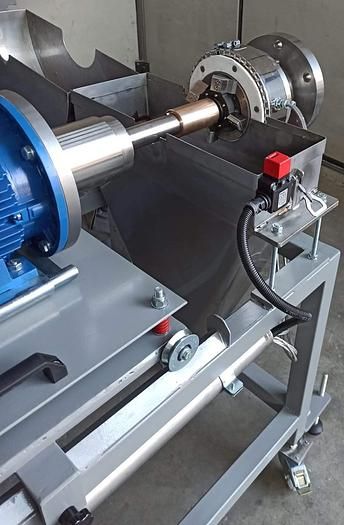

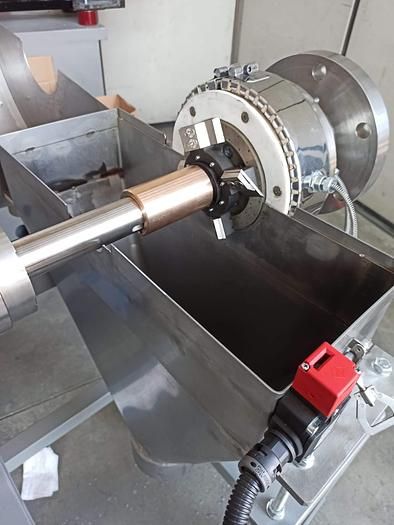

self adjusting knives to nozzle by means of a slide system which keeps knives pressed on the die, reducing wear
2,2 kw drive, 3.000 rpm with extra strong bearing and long shaft
cutting die in anti-wear steel with number and Ø of holes bespoke to project.

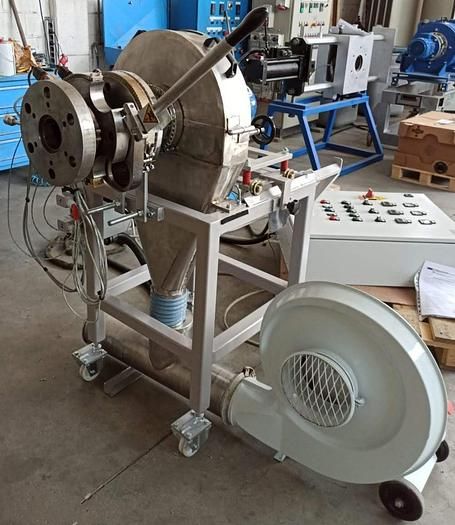

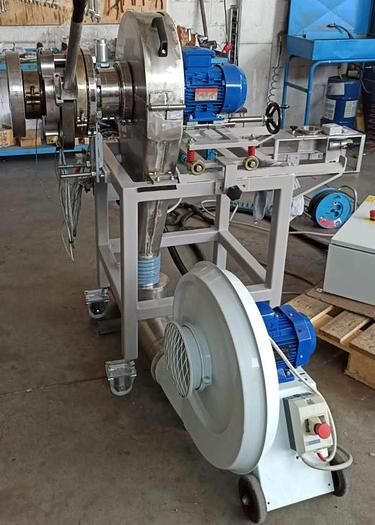

1,5 kw Venturi blowing system + pipes and cyclone
n.2 thermoregulation areas
knife mounting template

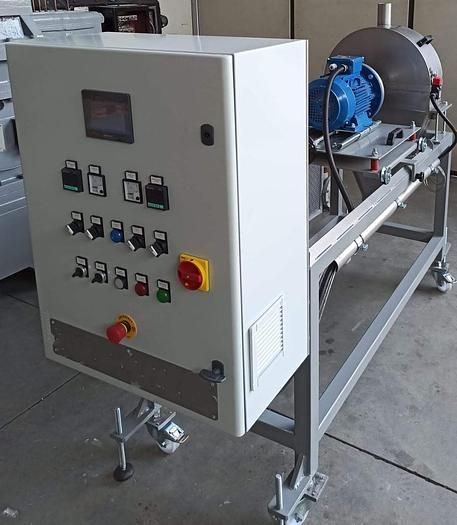

electric cabinet and touch screen control board with modem for remote assistance
3 mt.cable machine/panel
flange built to design to fit your extruder, heated by ceramic heating elements , temperature probe and protective casing
