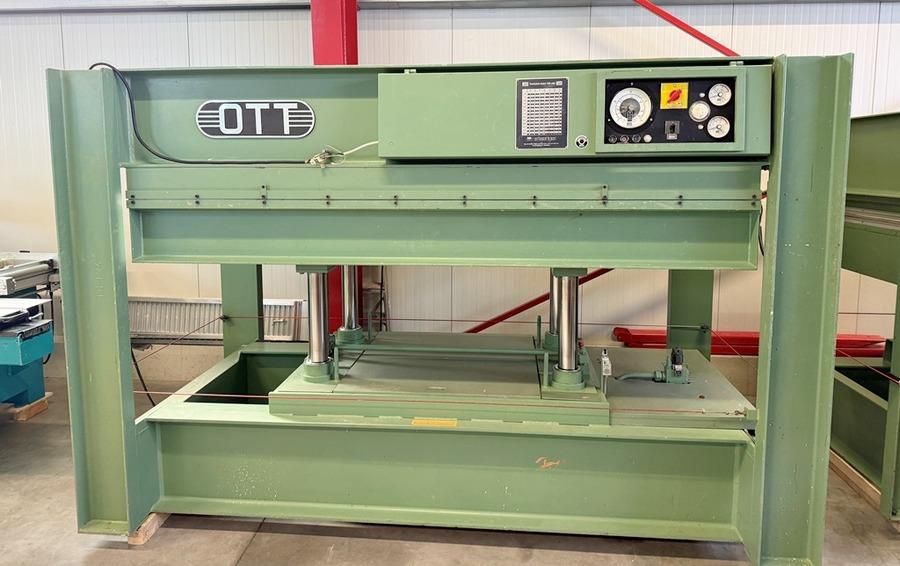

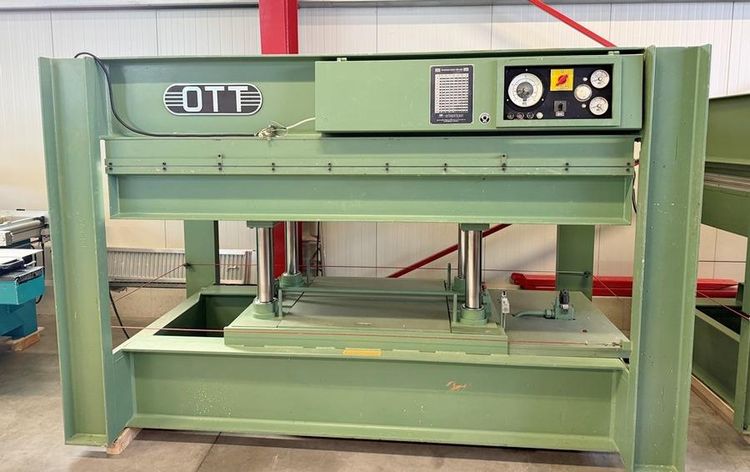

OTT 300 K 2513

Veneer press Used
Very sturdy design with 4 longitudinal beams in the upper press section and 4 longitudinal beams in the press table
Plate dimensions 2550 x 1350 mm LW
Total pressure 100 tons
Electric heating, replaceable heating elements
Heating plates made of solid aluminum, covered with Mylar film
Maximum temperature 150 °C
Specific pressure 3.0 - 5.0 kg/cm2
4 press cylinders, each 90 mm in diameter
Rack-and-pinion guide for the press table
Button controls for Open – Close – Stop
Circumferential emergency stop pull cord, configured for two-hand operation
Opening width continuously adjustable up to approx. 420 mm
Automatic pressure regulation via high-pressure gauge
Pressure preselection table with 2 specified values for each workpiece size
Transport dimensions approx. 3150 x 1550 x 2150 mm LWH
Weight approx. 5000 kg
