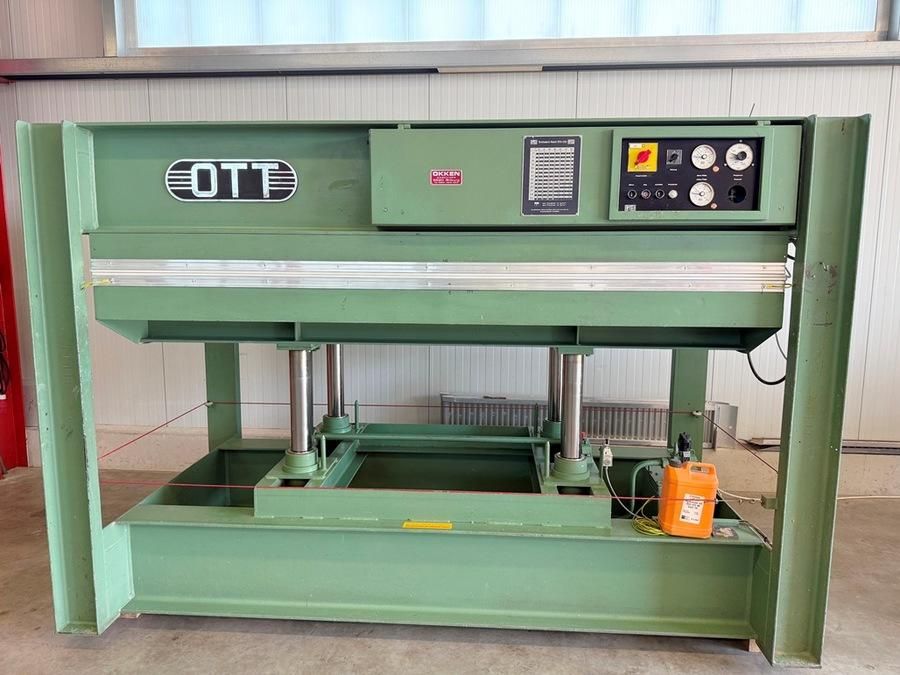

OTT JU 2513

Veneer press Used
Electrically heated heating plates
Hydraulic pressing pressure
Aluminum heating plates
Plate dimensions 2550 x 1350 mm LW
BUSSE heating plates renewed in 2019 and covered with Mylar film
4 hydraulic cylinders each 90 mm diameter
Total pressing pressure 90 tons
Specific pressing pressure 2.8 - 4.0 kg/cm2
Button control for closing / opening / stop
Emergency stop rip cord
Opening width 400 mm
Total power 19 kW
Stable construction with 3 longitudinal beams in the upper part of the press and 2 longitudinal beams in the press table
Transport dimensions approx. 2900 x 1500 x 2000 mm LWH
Weight approx. 4200 kg
