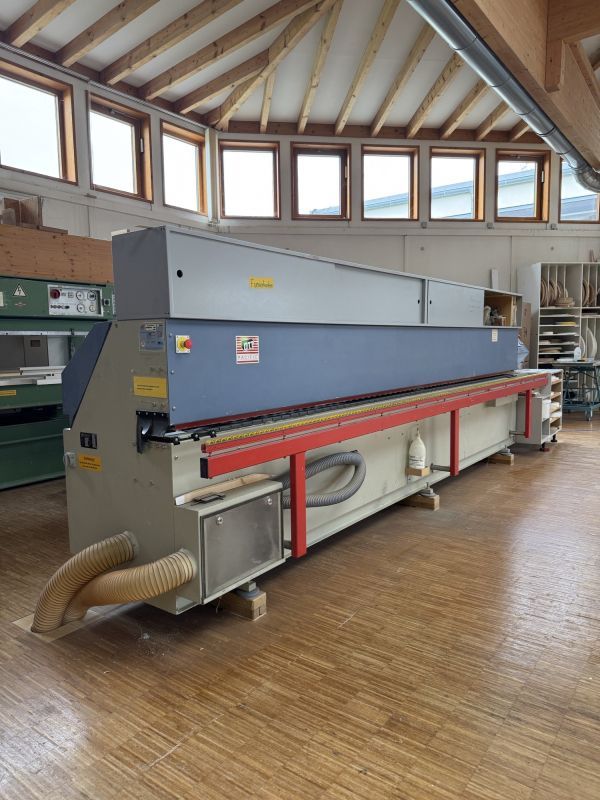

OTT Pacific V 6-F

Single-sided edge banding machine
Technical specifications:
Edge thickness: 0.2 - 6 mm
Workpiece thickness: 8 - 42 mm
Workpiece width: min. 70 mm
Workpiece length: min. 150 mm

Feed speed: 12 m/min.
Electrical connection: 3 x 400V, 50 Hz
Exhaust: 2 x Ø 120 mm at 20 m/sec.
Exhaust capacity: 30 m³/h

Equipment - Processing units:
Joining mills
2 x 1.5 kW, 12,000 rpm, 200 Hz
two application-controlled work spindles

Gluing unit
Rapid-heating tank with Melt-matic
automatic edge magazine with optical monitoring
for strip edges in fixed lengths

Release agent spray system

Crosscut unit
2 x 0.2 kW, 12,000 rpm, 200 Hz
automatic swivel 0° / 3°

Flush milling unit 0° / 15° / 30° / 45°
2 x 0.43 kW, 12,000 rpm, 200 Hz

Radius milling unit R2 - R5
2 x 0.3 kW, 12,000 rpm, 200 Hz

2 quick-change stations for milling units

Corner rounding milling unit
2 x 0.3 kW, 12,000 rpm, 200 Hz

Scraper
2 x carbide scrapers

Polishing unit
2 x 0.2 kW, 2,800 rpm, 50 Hz

Weight: 2,000 kg
