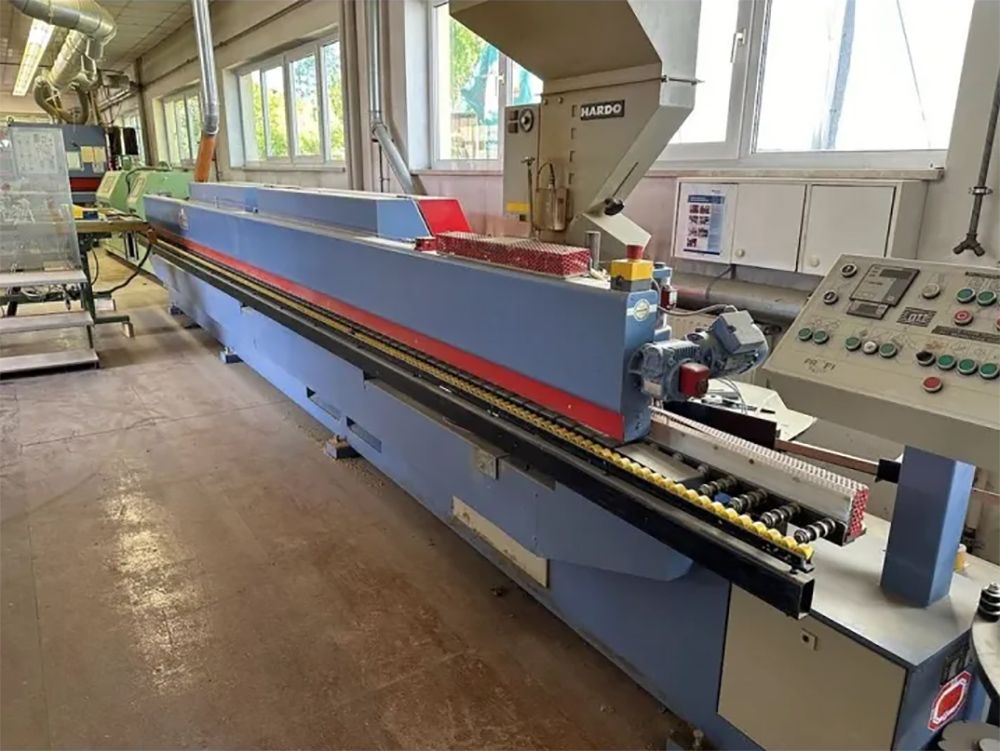

OTT PROFImatic 258

Operating Hours: 5,373.33 h (as read)
General Condition:
Machine is fully operational and well maintained.
All pneumatic air hoses were replaced approx. 2 years ago.

Processing Units & Equipmen:
Upper pressure unit – KAM 4-2-01
Quick-heating glue pot – KAM 4-61-02.01
Lower pressure unit – KAM 4-1-01
Edge feeding table – KAM 4-4-01
Automatic magazine for solid wood edges and foil
Feed roller – KAM K4-51-01
KAM synchronized foil cutter
End trimming unit – Model K17
Fixed milling unit – KAM 4-50-00 / Model NF 30.1
Fine trimming unit – KAM 4-26-80
Grooving unit – KAM 4-32-01
Corner rounding unit
Sanding unit
Scraper unit
Oscillating edge cleaning unit – KE-0

Technical Specifications:
Maximum solid wood edging thickness: 25 mm
Maximum roll material thickness: 3 mm
Feed speed: up to 24 m/min
Maximum workpiece height: 60 mm
Minimum workpiece length: 150 mm
Minimum workpiece width: 60 mm

Dimensions & Weight:
Dimensions (L x W x H): approx. 9,000 x 1,400 x 2,000 mm
Weight: approx. 4,000 kg
