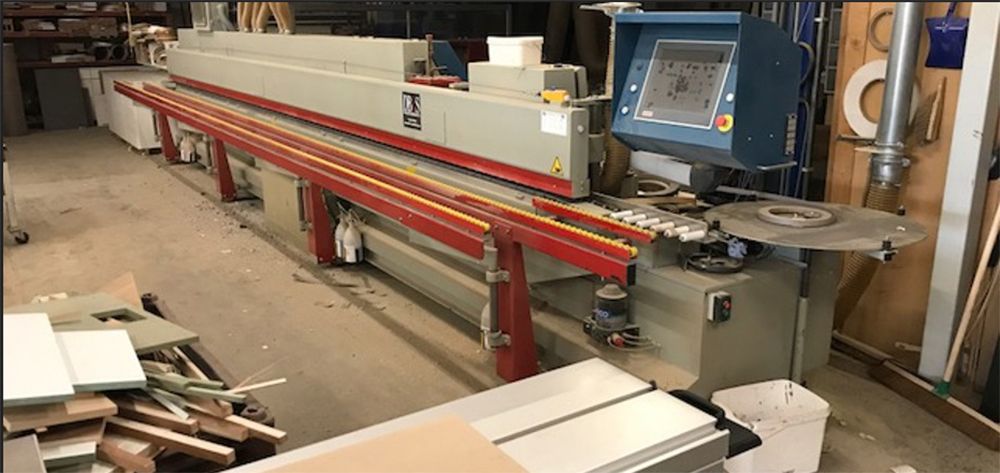

PROFIMATIC 2508

Single-sided edge bander, operating from right to left.
Processing EVA and PUR hot melt adhesive.
Bonding of veneer and Formica strips, Millamine, rolled PVC, and solid edges.
Edge thickness: 0.2 - 25mm

Workpiece dimensions:
* minimum width: 70mm
* minimum height: 8mm
* maximum height: 60mm
* minimum panel length: 150mm

Variable feed speed: 10 - 20 m/min with postforming.
Adhesive application via an adhesive roller, OTT CombiMelt system.

Dimensions: 8900 x 1300 x 1500mm
Weight: 3250 kg
Electrical output: 20 kW

* All units pneumatically controlled from the control panel.
* Automatic feed magazine for rolled edges, strips, and solid battens.
* The machine recognizes notches, hinge holes, and CNC work up to a maximum length of 80mm.
* Automatic chain lubrication.
* Heated feed guide. * Operation via BECKHOFF industrial PC with 15" color touchscreen.
* Combimelt adhesive system:
Compartmented adhesive tank for EVA or PUR granule adhesive, fully controlled and adjustable via the touchscreen.
Rilling unit - 2 motors in climb and conventional mode with diamond tooling.
2-motor saw unit - tiltable.
Flat milling cutters (upper and lower).
Chamfer milling cutters (upper and lower).
Radius milling cutters (upper and lower).
Radius scrapers.
AKF postform milling cutters - 2 individually operating motors - 2-sided scanning - diamond tooling.
Flat scraper.

Anti-static spray device.
Lubricant spray device.
Anti-PUR spray device.
Polishing brushes.
