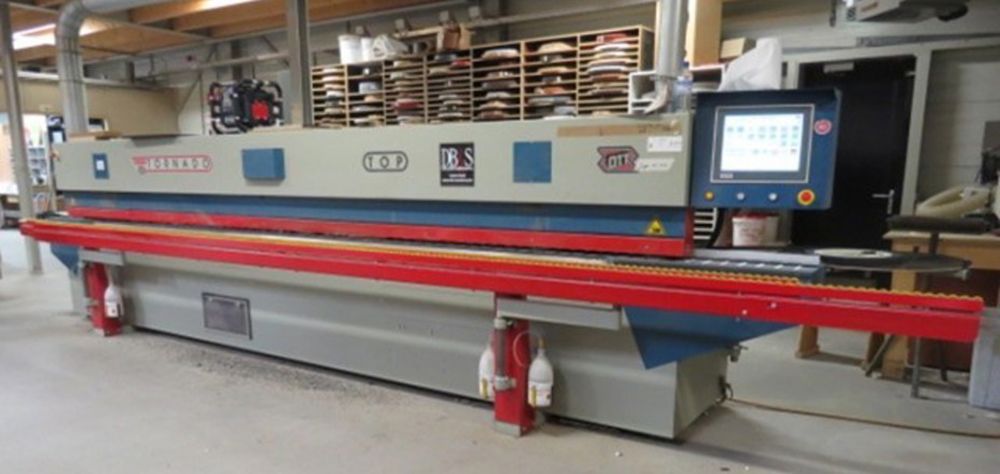

OTT Tornado

Edge bander
Voltage 380V 3 ph
Panel thickness 8-60 mm
Min. panel dimensions 70 x 150 mm
Edge material 0.2 - 12 mm
Throughput speed 14 m/min
Machine length 6170 mm

15" colour touch screen - Beckhoff industrial PC
Fully automatic control of all units from the control screen
Pre-milling height 65 mm
EVA & PU Glue (equipped with PU adhesive cartridge hopper)
PU cleaning nozzles with 4 heads + brushes
Sawing: 2 motors - 0-3° adjustable angle
Flat milling above and below
Radius milling above and below
Radius scraper
Controlled rounding group with 2 individually controlled 2-axis motors
Flat scraper
Brushes
