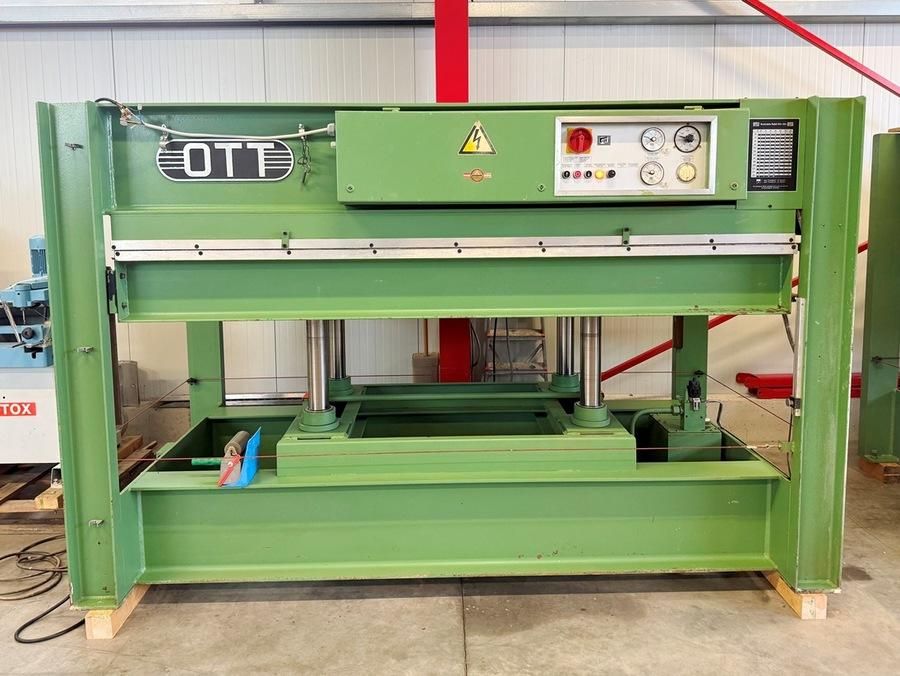

OTT Stabil 2513 / 90

Veneer press
Panel dimensions 2550 x 1350 mm LW
Silver anodized heating plates
Electric heating of the panels
Total pressing pressure 90 tons
Specific pressing pressure 3.0 - 4.0 kg/cm2
Opening width max. 400 mm
Total electrical power 19.2 kW
Button control for open-close-stop
4 hydraulic cylinders 90 mm diameter
Automatic pressure monitoring and correction when plates are closed
Adjustable limit switch for opening width
Emergency stop rip cord all around
3 solid longitudinal beams are installed in the upper part of the press
Press table with rack and pinion guides and table guides for exactly parallel closing of the plates
Compact hydraulic unit with combined 2-stage pump
The glass of the temperature controller of the lower heating plate is currently broken, setting function and temperature display are working
Transport dimensions approx. 2900 x 1500 x 1900 mm LWH
Weight approx. 4500 kg
