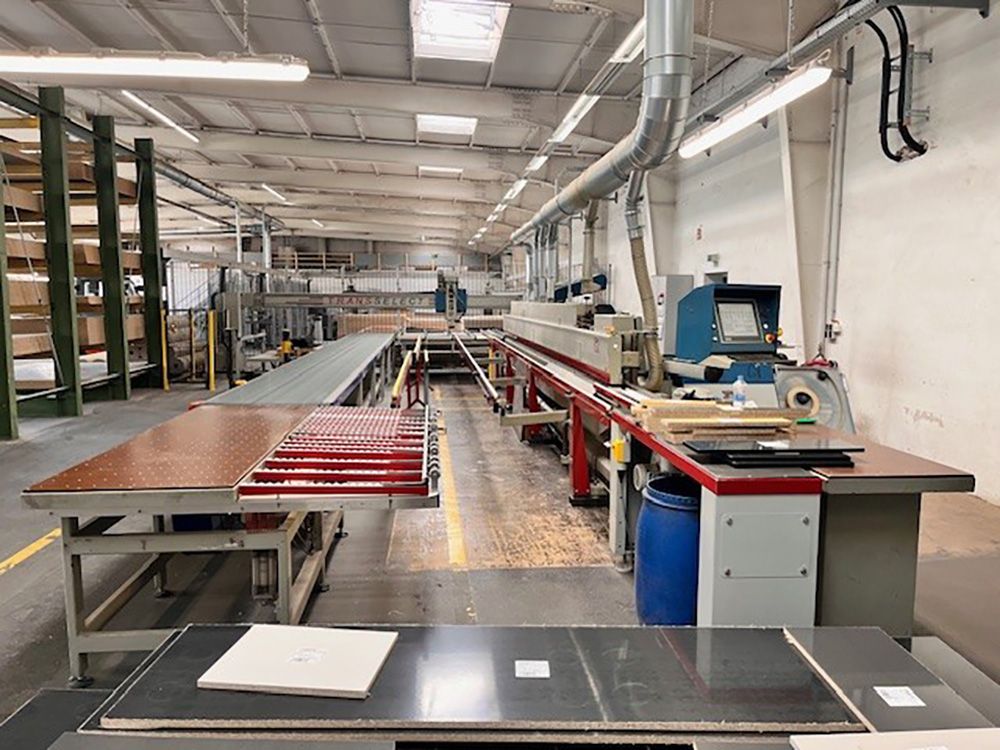

OTT TRANSedge 3000

Single-sided edge banding machine with vacuum transfer and return system

Technical data:
- Fixed stop side on the right
- Edge thicknesses: 0.2 - 25 mm

Workpiece dimensions:
- Width: min. 70 mm
- Height: min. 8 mm
- Height: max. 60 mm
- Length: min. 150 mm
- Throughput speed: 10 - 20 m/min
- Top pressure: Double rollers with electronic height positioning
- Pneumatic control of all units from the central 15-inch touch screen control panel via Beckhoff industrial PC

Aggregate equipment :
- Angle insertion aid as sliding carriage, foldable for narrow parts
- Jointing milling with 2 motors, each 3.0 kW, 12,000 rpm, in synchronous and counter-rotation
- Gluing unit with CombiMelt gluing system, suitable for processing EVA and PUR hot melt adhesives
- AKM edge magazine for feeding strips
- RMV 40 automatic roll magazine for edge thicknesses 0.2 - 3.0 mm / with 8-fold edge magazine
- KRV edge roll storage management
- Cutting unit with 2 motors 14000 rpm, pneumatically swiveling
- Flush milling unit with 2 motors, each 1.9 kW, 12000 rpm
- Fine and chamfer milling unit with 2 motors, each 0.75 kW, depth adjustment via program control
- Radius milling unit with 2 motors, inclined, with pneumatic feed via program
- AZK4 - Profile scraper unit with 4 blade profiles, accessible via program control
- AKF copy milling unit with 2 motors, each 0.37 kW, 12,000 rpm, for radius machining of the front and rear end faces
- ZKF surface scraping unit
- Groove milling unit with 2.7 kW motor, 0-90° swivel range
- Buffing unit with spray device
- Lubricant spray device for applying antistatic lubricant for cleaning surfaces

With TRANSLIFT return and stacking system
- Transfer of the workpiece to the return conveyor belt - without rotation
- Transfer of the workpiece to the return conveyor belt with rotation 0° / 90° / 180 °
- Unstacking of the workpiece onto stacking position 1 or 2 - without rotation
- Unstacking of the workpiece onto stacking position 1 or 2 - with rotation 90° left or 90° right
- A single-sided pneumatic tiltable air cushion table (2300 x 900 mm) is installed as an extension of the return conveyor belt
