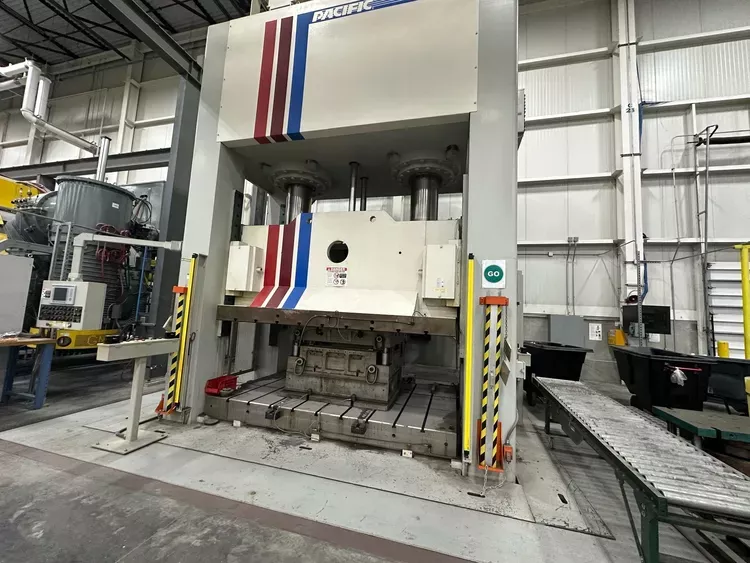

Pacific 1350 D-10/80 Hydraulic Press 1350 Ton

Capacity Forming 1350 Ton
Capacity Punching 900 Ton
Bed L-R 120 in
Bed F-B 80 in
Stroke 48 in
Daylight Opening 66 in
Closed Height 18 in
Bolster Thickness 12 in
Rapid Advance 326 IPM
Fast Press (@400 tons) 123 IPM
Normal Press 47 IPM
Fast Return 199 IPM
Normal Return 77 IPM
Main Motors (2) 125 HP
Reservoir Capacity 1650 Gallons
Die Cushion Capacity 100 Ton
Die Cushion Stroke 24 in
Die Cushion Pin Pad 90.5″ L-R x 54.25″ F-B
Windows 41 in
Approx Floor Space 107″ F-B x 197″ L-R
Approx Height 252″ above floor / 98″ below floor
Approx Weight 325,000 LBS
Cushion Yes
