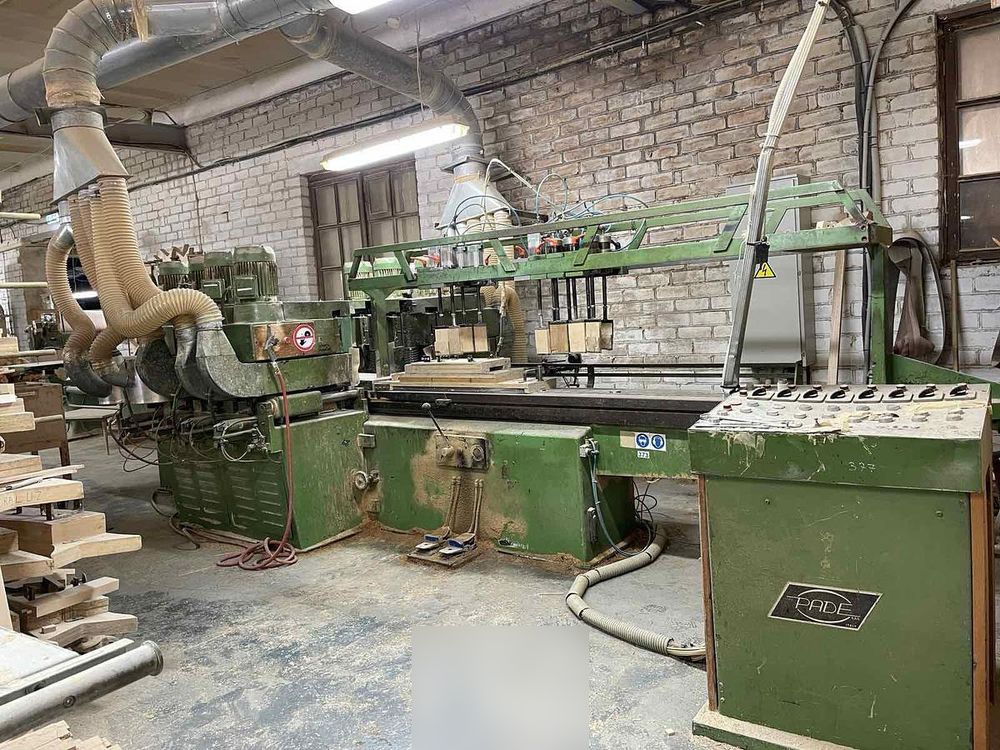

Pade UINZE 2T 1500

Machine for shaping both sides of the treated piece of wood, suitable for the production of chairs, tables, beds, armchairs and furniture elements in general.
Technical data. Original documentation available, includes: installation, maintenance, drawing descriptions, pneumatic diagram, electric diagram.

1+1 shaper units: motor power Hp 5,5 each one
Max. working length 2500 mm
Max. working width 350 mm
Table width 330 mm
Max. cutter height 170 mm
Max. cutter diameter 140 mm
Spindle diameter 35 mm
Table forward speed 0-15 m/min
Table return speed 40 m/min
Air pressure 6 bar
Rotation speed of shaping spindles 8000 rpm
