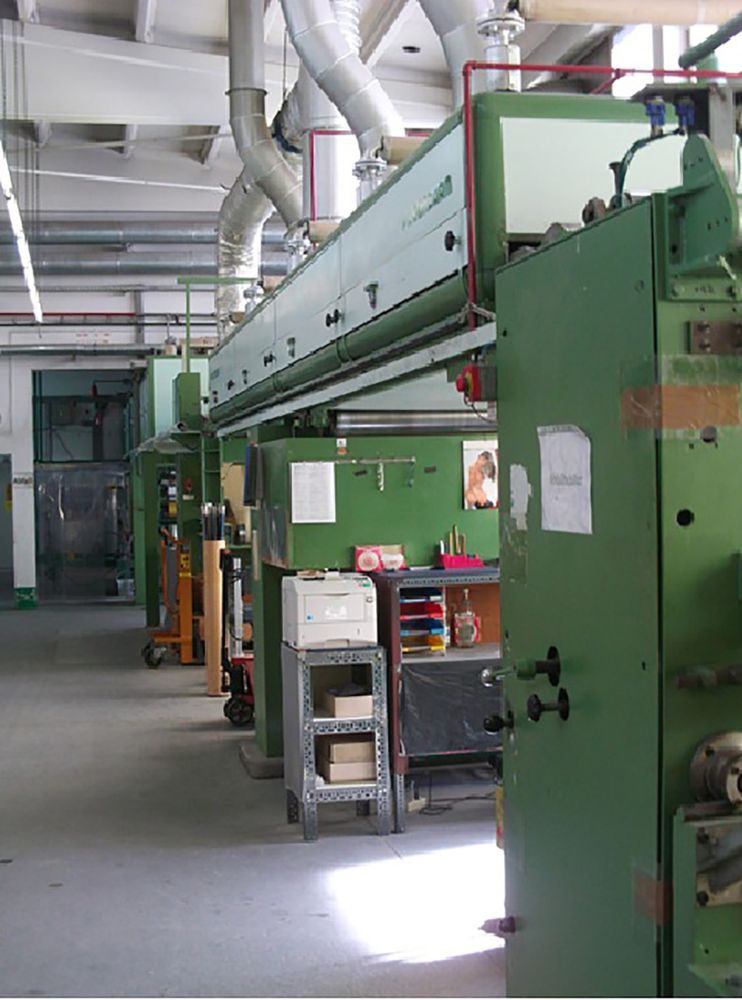

Pagendarm 1.300 m Coating and laminating machine

only 29.500 Euro ' as is, where is' EU
The only condition is that the system must be dismantled by February 28, 2026

Features :
➢ Coating variants: silicone, adhesive, lamination, functional
coatings
➢ Weight: dry coating weight up to 140g/m2 (dry)
➢ Adhesive: high viscosity adhesives
➢ Coating processes: suitable for water-based, solvent-based and
solvent-free coating processes
➢ Coating technique: 2 coating heads, 3 coating techniques
available, corona treatment
➢ Materials: process materials such as paper and polymer films

Speed 6-80m/min
Coating systems dispersion + solvents
Reel change manual
Total width 1300mm
Working width 1280mm
Number of commissioned works 2
Commissioned works Nozzle/roll rake (Meyer-Bar)
Roll rake with diving roller

Coating weights Nozzle/roll: 0,5-40
Roll div roller: 10
Comma: 5-140
Max. viscosity Nozzle/roll: 800-1000mPas
Roll div roller: thin liquid
Comma: 7500mPas
Dryer Convection dryer with strap
Dryer size predryer 3m (1 zone)
main dryer 9+8m (3+4 zones)

Unwinding specification :
Max reel width 1300mm
max carrier thickness 500ym
min carrier thickness 12ym
max outer diameter 500mm
Max reel weight 500kg
online thickness measurement no
continuous operation no

Rewinding specs:
min reel width 250mm
inner core diameter 3“ + 6“
max outer diameter 500mm
Max reel weight 500kg
