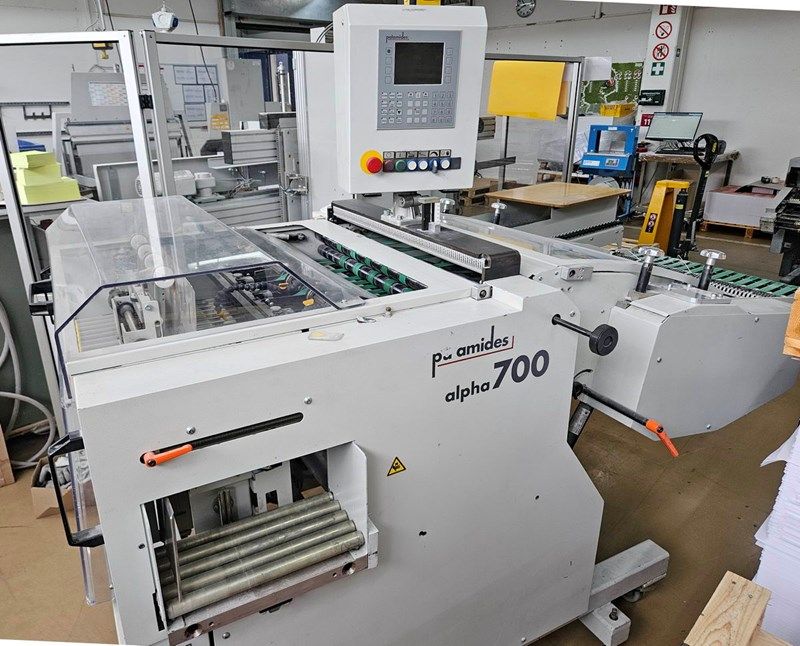

Palamides Alpha 700

Automatic Packet Stacker
- Mobile stacking delivery for mark-free discharge
- Working width: 760 mm
- Up to 3 benefits
- Pressing station with pre- and main press rollers with up to 3.5 t
- Collecting, counting, and vibrating in the chute to create clean stacks
- Packet lift delivery (1-person operation of folding machine and Palamides)
- The packet stacker is mobile for quick changeovers between different machines

Technical Data:
- Minimum parcel height: 10 mm
- Maximum parcel height: 160 mm
- Output: 900 parcels/h (per repeat)
- Speed: 15 - 200 m/min
- Infeed height: 400 - 1050 mm

Formats: (Infeed length x infeed width)
- min. 120 x 95 mm
- max. 1 repeat: 330 x 760 mm
- max. 2 repeat: 330 x 350 mm
- max. 3 repeat: 330 x 235 mm
- Electrical connection: 3.5 kW
- Compressed air: 6 bar dry air, to be provided on site
