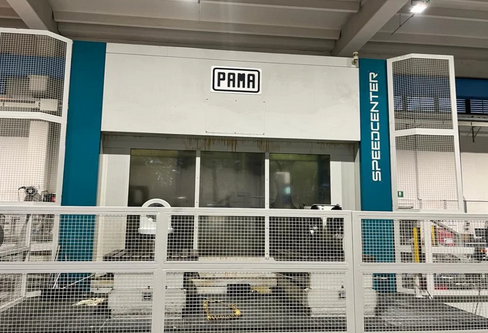

Pama SPEEDCENTER 5 Axis

X-axis travel: 2000 mm
Y-axis travel: 1600 mm
Z-axis travel: 1800 mm

B-axis travel: 360°

Siemens Sinumerik 840D CNC control
Automatic pallet changer (4 pallets)
High pressure coolant system 30 bar
Renishaw touch probe

Spindle speed: 0 – 4000 rpm
Spindle motor: 37 kW
Spindle taper: ISO 50
Torque: 162 Nm

Tool magazine capacity: 306
Max tool weight: 35 kg

Pallet size: 1000 x 1000 mm
Max workpiece diameter: 1550 mm
Max workpiece weight: 3000 kg
Central bore: 22H7

Voltage: 400 V 3 phase
Air requirement: 4 bar

Noise level: 78 dB
