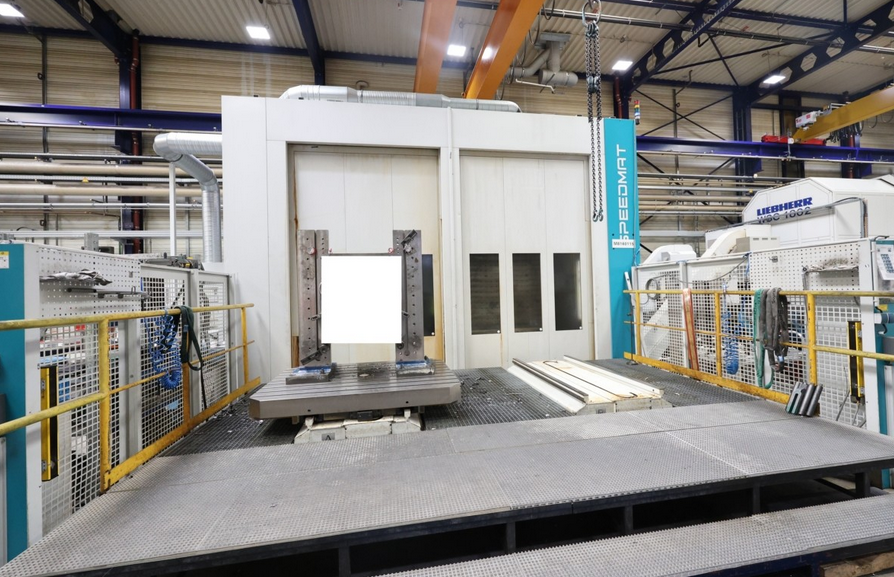

Pama Speedmat 2/TR 8 3 Axis

X travel 2500 mm
Y travel 2500 mm
Z travel 1700 mm
Quill stroke 700 mm
Control Siemens Sinumerik 840 D
Max. workpiece weight 6000 kg
Spindle diameter 130 mm
Tool taper ISO 50 DIN 69871 - AD
Max. torque at the spindle 1847 Nm
Total power requirement 65 kW
Machine weight approx. 45 t
Machine dimensions approx. 10.9 x 9.3 x 5.7 m
Worktable clamping surface 2500 x 2000 mm
Table height above floor 800 mm
Feed speed X axis 0.5–10000 mm/min
Feed speed Y axis 0.5–10000 mm/min
Feed speed Z axis 0.5–10000 mm/min
Rapid traverse X/Y/Z 25/25/25 m/min
Max. feed force X axis 28000 N
Max. feed force Y axis 27000 N
Max. feed force Z axis 28000 N
Spindle speed gear stage 1: 6–1004 rpm
Spindle speed gear stage 2: 950–4000 rpm
Approx. 30 SK 50 tool holders
Measuring probe
Coolant system with paper belt filter and chip conveyor
Cooler
Oil mist extraction
Fixators
Technical documentation
