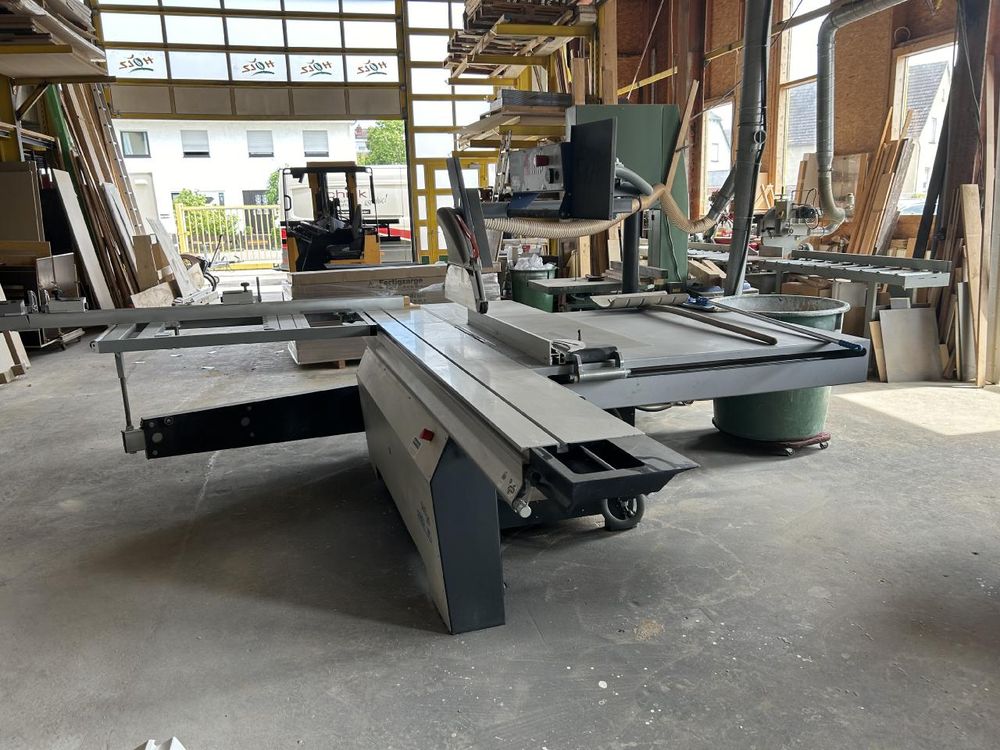

Panhans 680/20

Used machine
Commissioned in 2019

Equipment and technical specifications:
> Safety guard swings away to both sides, protective hood with interchangeable inserts, wide/narrow
> Push-button control with electronic soft start (start/stop)
> Electronic wear-free motor brake
> Cutting width, electric motor-controlled on the width stop: 1250 mm
> Length stop on the cross slide, extendable up to 3500 mm
> Saw blade Ø 400 mm, retractable under the table
> Extraction nozzle 120 mm on the machine body, 80 mm on the protective hood
> Anodized trolley, length and width stop profiles
> Machine body and swivel arm powder-coated anthracite RAL 7021
> Electrogalvanized cross slide
> CE compliant, GS tested, BG wood dust tested

Cutting length of trolley: 3450 mm
Cutting height Max. 155 mm at 90°, 105 mm at 47°
Cutting width with cross stop: 1250 mm
Max. saw blade diameter: 450 mm

Table size: cast iron table top: 1200 x 655 mm
plus table extension: 750 x 655 mm
Table extension: 1430 x 940 mm
Table height: 900 mm
Motor power: 5.5 kW / 7.5 HP
Voltage: 400 V / 50 Hz
Space requirement: 7110 x 4150 mm
Weight: approx. 1150 kg
Including 3 digital displays on the cross stop
Including double-sided miter gauge DSG A-S
